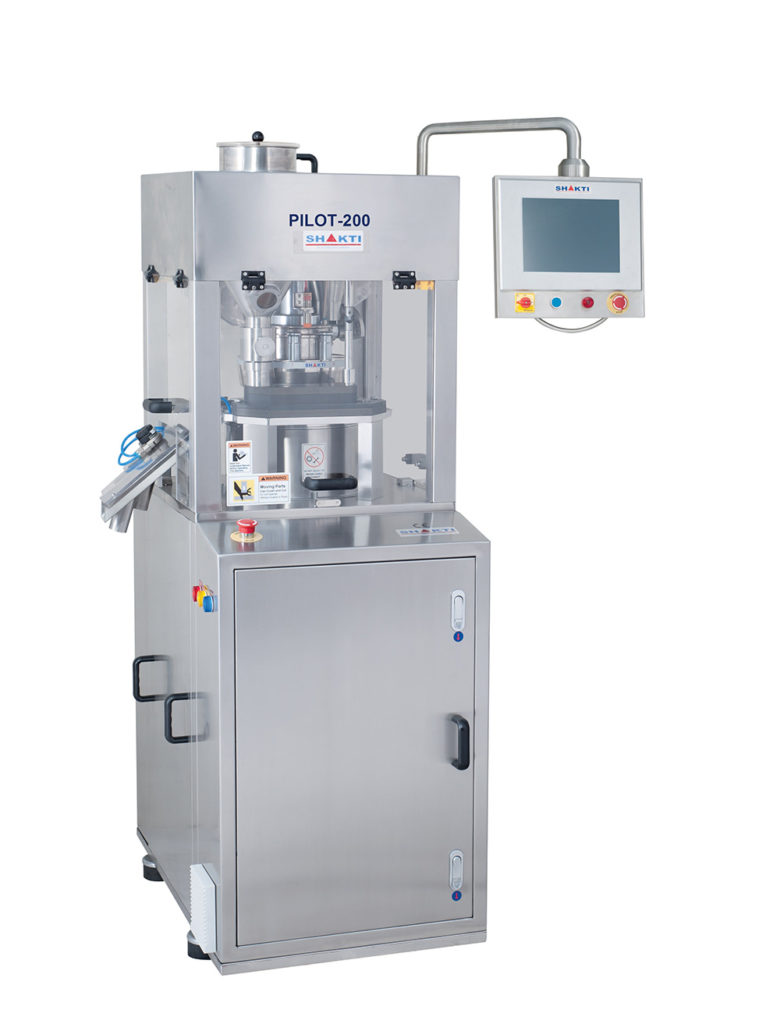

About Tablet Press Fully Instrumentation – cGMP (PILOT 200)

PILOT 200 is a High Tech Rotary Tablet Press designed for R & D and small batch production. This Single sided R & D Tablet Press fully conforms to GMP and the safety requirements.

The Tablet Press Data Acquisition system is designed for detailed evaluation of the compression process. Tablet Press Instrumentation Package facilitates measurement, recording, storing, analysis and printing of per-compression force, compression force, ejection force, machine speed, dwell time, etc.

Detailed Specification for Tablet Press Fully Instrumentation – cGMP (PILOT 200)

  • Technical Specifications

MODELPILOT 200 SHAKTI TABLET PRESS
No. Of Station3+3+3=9810
Tooling3B/3BB/3D Tooling'D' Tooling'B' Tooling
Max. Operating Load - Motorized60 kN / 6 Tons60 kN / 6 Tons60 kN / 6 Tons
Pre Compression Load - Motorized20 kN / 2 Ton20 kN / 2 Ton20 kN / 2 Ton
Turret Speed (RPM)5 to 38 (Infinitely Variable)5 to 38 (Infinitely Variable)5 to 38 (Infinitely Variable)
Force Feeder RPM5 to 70 (Infinitely Variable)5 to 70 (Infinitely Variable)5 to 70 (Infinitely Variable)
Output Tablets/ Hour * Min.120024003000
Output Tablets/ Hour * Max.90001820022800
Max. Tablets Dia. (MM)22 For "D" Tooling
16 For "B" Tooling
11 For "BB" Tooling
2216
Max. Depth Of Fill - Motorized17 mm17 mm17 mm
Hopper Capacity2 Kg (6 liters)2 Kg (6 liters)2 Kg (6 liters)
Upper Punch Penetration (MM)3 to 6 mm3 to 6 mm3 to 6 mm
Noise Level< 80 dBA< 80 dBA< 80 dBA
Main Electric Motor
(Driven Through ACVF)
2 HP, 1440 RPM, 3 Phase2 HP, 1440 RPM, 3 Phase2 HP, 1440 RPM, 3 Phase
Gear Motor for Feeder
(Driven through ACVF)
0.25 HP, 1/3 Phase0.25 HP, 1/3 Phase0.25 HP, 1/3 Phase
Electric Supply220V 3 Ph, 60 Hz / 415 V, 3 Ph, 50 Hz (2 kW)220V 3 Ph, 60 Hz / 415 V, 3 Ph, 50 Hz (2 kW)220V 3 Ph, 60 Hz / 415 V, 3 Ph, 50 Hz (2 kW)
