Products3D Shaker (Tumbler) Mixer Model (S3D-5, 10, 20, 30, 50, 100, 200, 400, 600, 800 Ltr.)

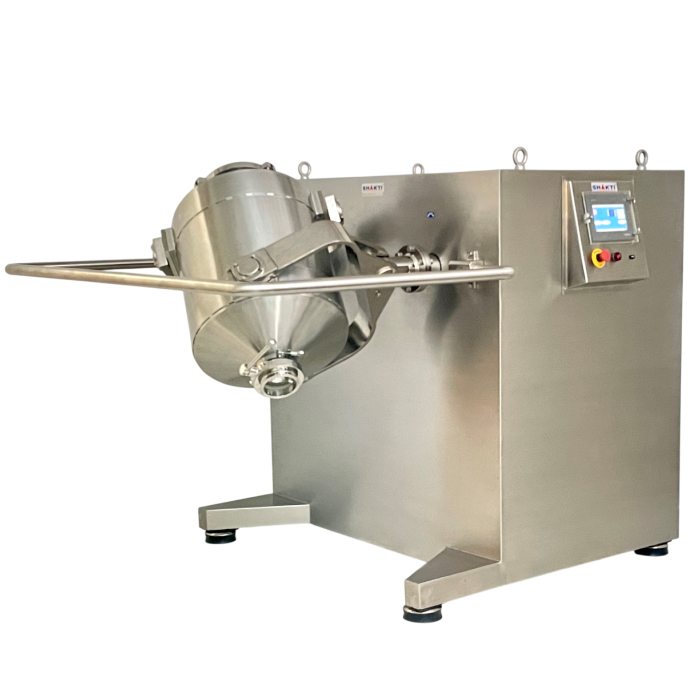

SHAKTI 3D Tumbler Mixer / blender provides a time-efficient and cost-effective method for powder and liquid mixing / blending. The oloid rotary mechanism produces a uniform blend of ingredients for wide range of pharmaceutical drugs & different materials, such as powders and fluids. It is used in any industry and application, especially in Pilot scale and analytics. It’s used for homogeneous mixing of powdery substances with different specific weight and particles size. Producing dry to wet & wet to wet mixers is also possible. The production process is hygienic and dust free because the product is mixed in independent container. The exceptional efficiency of 3D-Shaker Mixer turns in a three-dimensional motion for gentle constant and reproducible mixing result and the product is subjected to and ever changing, rhythmically pulsing motion. The result meets the highest requirement and are achieved in a minimum of time. The mixers’ housing is made of steel. Safety Guard Railing connected to the safety switch ensures no harm can be done while the mixer is running.
| Specifications | Details | ||||
|---|---|---|---|---|---|
| Model | S3D-5 | S3D-10 | S3D-20 | S3D-30 | S3D-50 |
| Gross Capacity L | 5 L | 10 L | 20 L | 30 L | 50 L |
| Working Capacity @80% L | 4 L | 8 L | 16 L | 24 L | 40 L |
| Working Capacity Kg ** | 3 | 4 | 8 | 12 | 25 |
| Container Speed rpm | 3-50 | 3-50 | 3-50 | 3-35 | 3-20 |
| Motor Power HP (kw) | 0.5 (0.37) | 1 (0.75) | 1 (0.75) | 2 (1.5) | 2 (1.5) |
