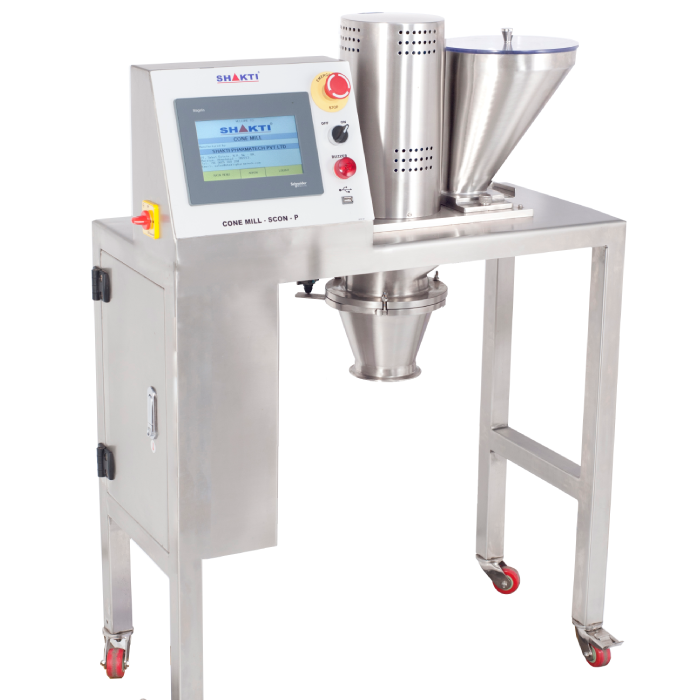

Lab Cone Mill R & D Model – HMI (SCON – M & SCON – S)

SHAKTI High Tech Conical Screen Mill extremely reliable, perfect for even the most demanding of processing requirements in R & D. This Equipment balances performance with simplicity, to provide a solution that guarantees a high output but is easy to operate, clean and maintain. The Cone Mill is suited to dry, wet or fine milling in the pharmaceutical, food, chemical and consumer goods industries. The mill can easily be adapted for use on different products, simply by changing the granulating screen, presenting a cost-effective solution to your size reduction requirement.

Specifications Details
Model SCON - M SCON - S
Output capacity 1 kg to 50 kg/hr 100 gm to 3 kg/hr
Charging hopper capacity 3 kg. 1 kg
Minimum particle size Approximately achievable 150 microns.
Power 0.5 hp / 0.37 kw. 0.25 hp / 0.18 kw.
Noise level <75db
Supply voltage** 110v / 220v, 1 ph, (220v / 440v, 3 ph)
Impeller speed range Min 100 rpm & max. 2850 rpm
