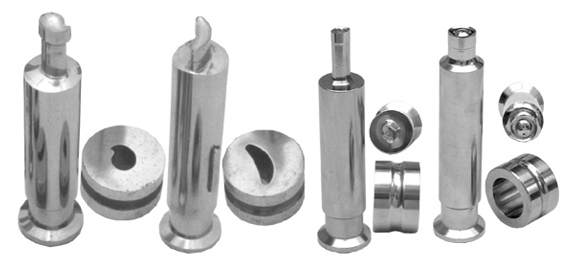

About Dies & Punches (All Types)

Salient Features

  • Punches and dies are made of OHNS / HCHC.
  • OHNS – Oil Hardened Nitride steel / HCHC – High carbon High chromium steel.
  • Made on CNC machines.
  • Careful matching of material and hardness
  • Trouble free fitting and removal
  • Manufactured to the smallest tolerances.
  • High precision finish

Detailed Specification for Dies & Punches (All Types)

  • Technical Specifications
  • Benefits
  • Shapes Possible
  • Optional / Extra on top of it

Capsule Shape Punch & Die Sets

It helps you to produce capsule shape tablets. Capsule shape punch die sets applicable to pharmaceutical and ayurvedic industries. These punch die sets are available with different size, concavity, and flat in plain or engraved break line.

By using capsule shape punch die sets, you can manufacture following types of tablet :

  • Concave with Edges
  • Deep Concave
  • Flat Faced
  • Normal Concave
  • Flat with Bevel Edges

Geometric Shape Punch & Die Sets

It helps you to produce tablets with different geometric shapes like square, rectangular, triangular, benzine, rohmbus etc. Normally shaped (regular) punch die sets are applicable to pharmaceutical, confectionery, chemical, industrial powder metallurgy industries. These punch die sets are available with different size, concavity, and flat in plain or engraved break line.

By using round shape punch die sets you can also manufacture following types of tablet :

  • Triangular
  • Benzine
  • Rohmbus
  • Rectangular
  • Square

Oval Shape Punch & Die Sets

It helps you to produce oval / ellipse shape tablets. Normally oval shape punch die sets are applicable to pharmaceutical and ayurvedic industries. These punch die sets are available with different size, concavity, and flat in plain or engraved break line.

By using oval shape punch die sets, you can manufacture following types of tablet :

  • Flat Faced
  • Flat With Bevel Edges
  • Concave/Deep
  • Concave With Bevel Edges

Round Shape Punch & Die Set

These punch die sets help you to produce round shape tablets. Normally round shapes punch die sets used by pharmaceutical and veterinary industry. These punch die sets are available with different size, concavity, and flat in plain or engraved break line.

By using round shape punch die sets you can also manufacture following types of tablet :

  • Shallow Concave
  • Ball Shape
  • Deep Concave
  • Flat Faced
  • Concave with Edges
  • Flat with Bevel Edges
  • Normal Concave

Round Shape Punch & Die Sets

These punch die sets help you to produce round shape tablets. Normally round shapes punch die sets used by pharmaceutical and veterinary industry. These punch die sets are available with different size, concavity, and flat in plain or engraved break line.

By using round shape punch die sets you can also manufacture following types of tablet :

  • Shallow Concave
  • Ball Shape
  • Deep Concave
  • Flat Faced
  • Concave with Edges
  • Flat with Bevel Edges
  • Normal Concave
  • Longer tool life
  • Punches and dies for continuous production
  • Longer life of machine parts hence less spares consumption
  • A better cost to output ratio

Standard

  • By default “EURO” / Alternatively “TSM” available.
  • Round
  • Oblong
  • Oval
  • Special shape

Individual Engravings

  • Flat
  • Convex
  • Beveled
  • Bisects
  • Logos
  • Dust Protection cap groove on upper punch
  • Full ELNP coated
  • Hard Chrome Plated Tips

Please fill up below form and send us for details technical and quotation
