About Dust Extractor (SDE)

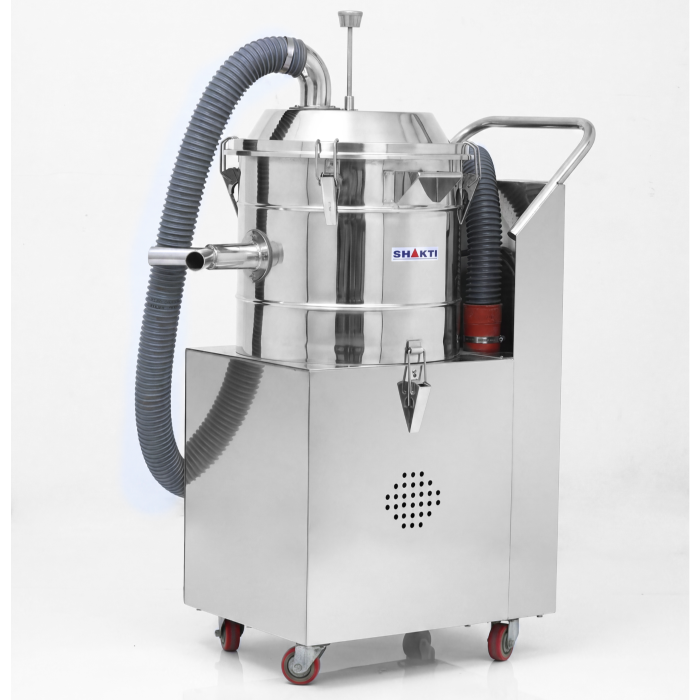

SDE-DUST EXTRACTOR (DUST COLECTOR) This Equipment is used for controlling dust generated during tablet compression, tablet de-dusting, granulation and other processes to avoids product cross contamination. Minimizes mechanical strain & excessive wear of tableting machine resulting in minimum machine break downs and punch wears. Stainless steel blower fan is dynamically balanced.

  • Suction Capacity : 150 CFM ±10%
  • Dust Storage Capacity (Ltr) : 20

Detailed Specification for Dust Extractor (SDE)

  • Technical Specifications
  • Salient Features
Model No.SDE -150 (250 m3/hr)SDE - 300 (500 m3/hr)
Suction Capacity150 CFM ±10%300 CFM ±10%
Filtration Area.0.82 m21.34 m2
Dust Storage Capacity20 L40 L
Inlet Connections4 Nos. of Dia- 38.1 mm
1 Nos. of Dia – 62 mm
4 Nos. of Dia- 38.1 mm
1 Nos. of Dia – 62 mm
Electrical1 HP / 2800 RPM / 415 V / 50 Hz / 3 PH / AC
1 HP / 2800 RPM / 220 V / 60 Hz / 3 PH / AC
1.5 HP / 2800 RPM / 415 V / 50 Hz / 3 PH / AC
1.5HP / 2800 RPM / 220 V / 60 Hz / 3 PH / AC
Overall Dimension28" x 19" x 28" Ht.36" x 29" x 56" Ht.
Net Weight70 Kg110 Kg
Gross Weight130 Kg170 Kg
  • This Equipment is used for controlling dust generated during tablet compression, tablet de-dusting, granulation and other processes to avoids product cross contamination.
  • The machine controls the flying dust generated during the compression of tablets.
  • Minimizes mechanical strain & excessive wear of tableting machine resulting in minimum machine break downs and punch wears.
  • Stainless steel blower fan is dynamically balanced.
  • Design as per cGMP norms.
  • All Contact parts are Stainless steel.
  • Low maintenance, easy-clean design.
  • Castors for Mobility.
  •
dust-extractor
