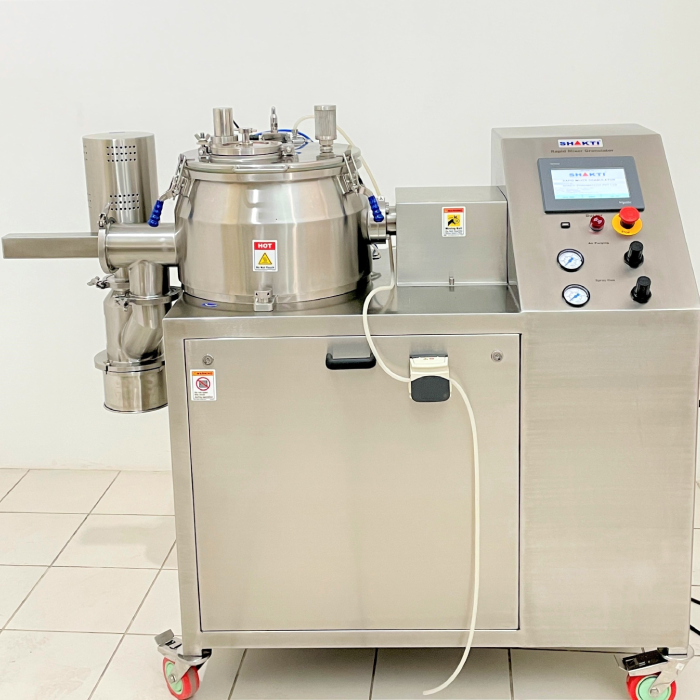

Rapid Mixer Granulator – (SRMG – 10KG/25 Ltr – HMI)
SHAKTI Pilot Scale High shear wet granulation process is extensively used in pharmaceutical industry to transform fine heterogeneous powders into homogenous blend of granules with bigger size and density to improve flow and compatibility for tableting operation.
SRMG-20 combines 3-blades impeller with design able to ensure a very good movement of the granules even at low speed. The blade tips of the granulator are positioned tangentially to avoid any dead spots. Tulip design of the bowl allows a perfect and uniform granulation. SHAKTI rapid mixer granulator can be designed to be installed in high containment granulation lines for both R & D labs and Pilot scale production.
| Specifications | Details |
|---|---|
| Model | SRMG-25L |
| Container gross Volume | 25 Liters |
| Container working Volume | 3-10 Kg (wet mass – Depends on Formulation) |
| Main Mixer Motor | 2 Hp (1.5 kw), 1400 RPM, 415 v |
| Main Mixer Motor RPM | 5 to 150 - Variable |
| Chopper Motor | 1 Hp (0.75 kw), 2800 RPM, 415 v |
| Chopper Motor RPM | 700 to 2800 - Variable |
| Cone Mill – Inline (Optional -if fitted) | 150 to 1000 - Variable |
| Motor – Cone Mill (Optional -if fitted) | 0.5 Hp (0.37 kw), 1400 RPM, 415 v |
| Cone Mill Output | 70 kg / h depending upon the product & the reduction required in size |
| Spray Nozzle (Optional -if fitted) | SS 316L Flat fan internal mixing with cleaning & control needle. |
| Peristaltic Pump | 0.25 hp, 75 rpm, Max. 80 ml/min |
| Compressed Air Pressure | 6 bar – Filtered dry compressed air. |
