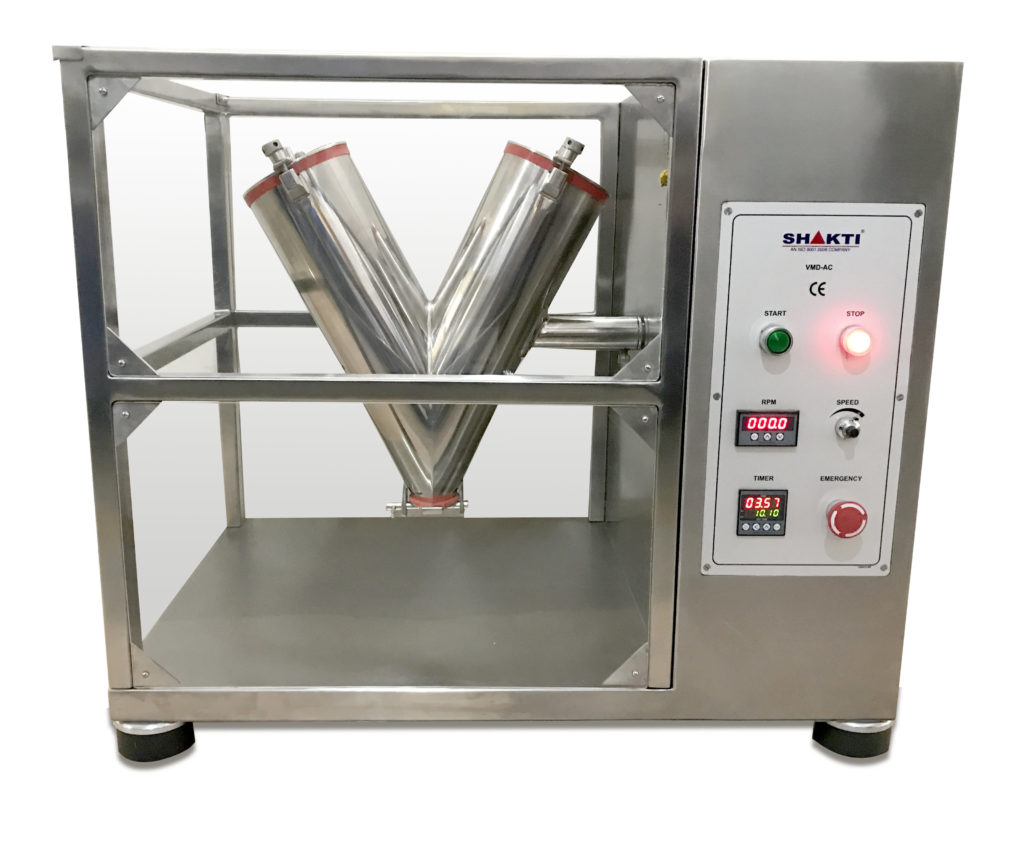

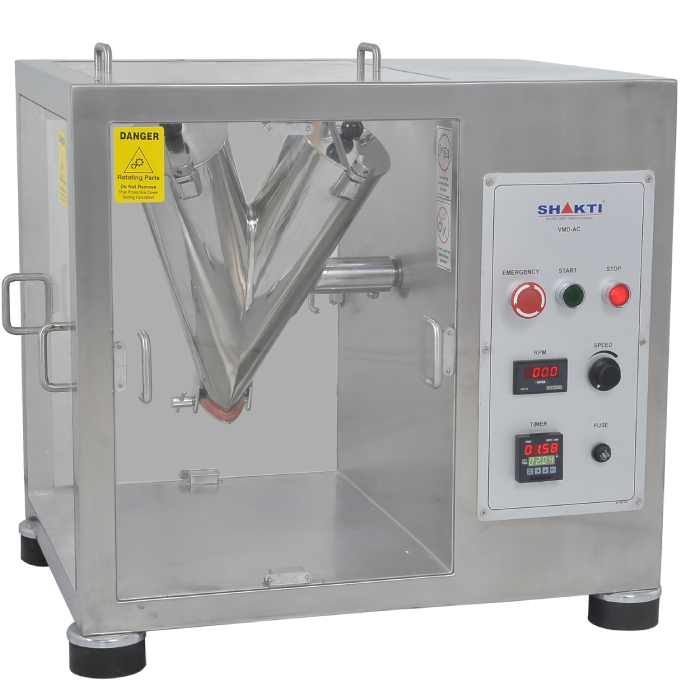

About Lab V – Blender – 1, 2, 5 & 10 Liters. (GMP Model) (SVB-10-MINI)

The simple, compact and efficient SHAKTI Lab V – Blender Equipment suitable for Research and Production in the Pharmaceutical, Chemical, Cosmetic, Food Industry, Pharmacy, Pharma University and Laboratory Applications. The blend is achieved by the constant dividing and intermeshing of particle movement provided by two connected cylinders. The shapes of blender body result in a near-complete discharge of product material, clearly an added advantage over a horizontal blender. The V- blender is good for blending dry powders and granulated products. V-Blender Equipment is based on a powerful Main Drive Unit.

‘SHAKTI’ V- blender is a very precision machine, performing dry blending of powder or granules in only 10 to 30 minutes. This machine is utilized for mainly homogenizing, blending and also for granules lubrication as that facilitates better results at a tablet press while compressing this granule. The entire operation is fully dust-free and automatic. All parts coming in contact with the mix are of stainless steel 316 quality and are highly polished. Drive motors, electrical control panel and control station are supplied in non-flameproof construction, the control panel is located in low-risk area. The machine will have a control panel near the vessel.

Detailed Specification for Lab V – Blender – 1, 2, 5 & 10 Liters. (GMP Model) (SVB-10-MINI)

  • Technical Specifications
ModelSVB-1SVB-2SVB-3SVB-5SVB-10
Gross Capacity0.5 Kgs [1 Lit]1 Kgs [2 Lit]2 Kgs [3 Lit]2.6 Kg [5 Lit]5 Kg [10 Lit]
Working Capacity0.3 Kgs0.5 Kgs.1 Kgs.1.6 Kgs2.6 Kg
Dimensions-MM140 x 266 x
254 Ht
200 x 300 x
300 Ht
250 x 200 x
380 Ht
355 x 178 x
420 Ht
508 x 305 x
508 Ht
Net Weight3.7 Kgs.4.5 Kgs.5.Kgs.5.7 Kgs.6.5 Kgs
lab-v-blender-svb-1,2,5&10-ltrs.(gmp model)
