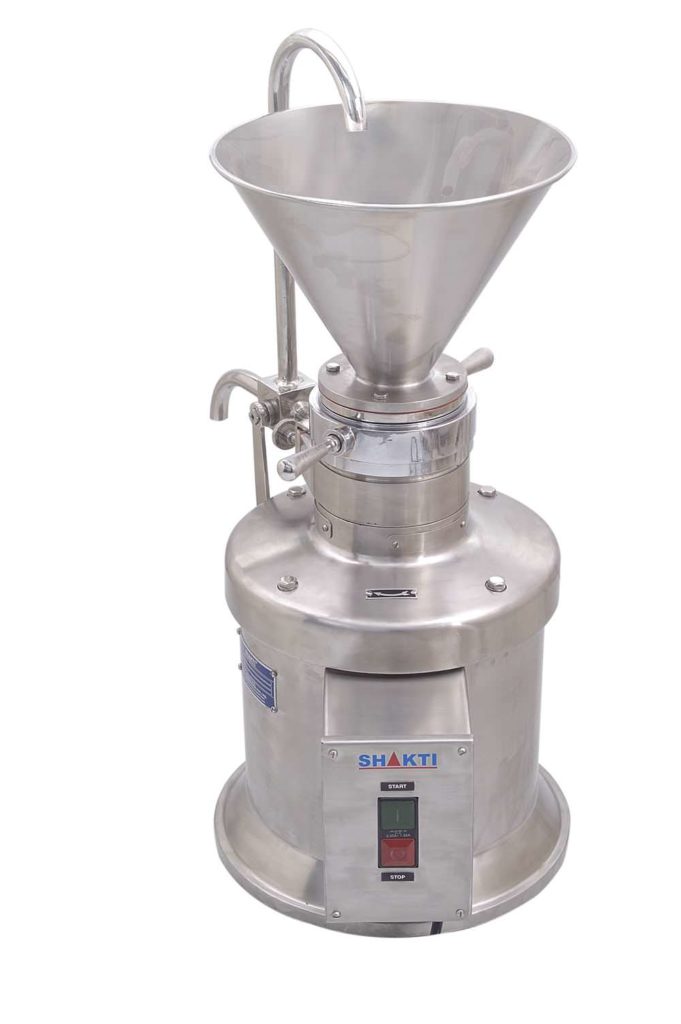

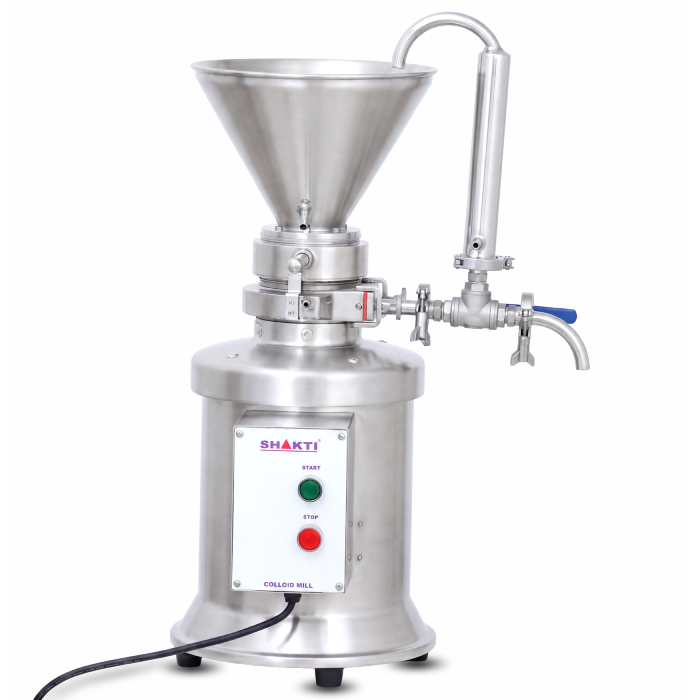

About Lab Colloid Mill (SCM)

Colloid Mill is an ideal and perfect homogenizer-cum-emulsifier. It finds its application in various processes like grinding, homogenizing, emulsifying, dispersing, mixin, extracting etc., catering to the needs of several industries, such as

1. Pharmaceutical Industry.
2. Pharmaceutical Institution & Research centre.
3. Food, Dairy, Sweetmeats and confectionery Industry.
4. Chemical Industry, Rubber Industry
5. Paint Industry, Textile Industry.
6. Cosmetic and Detergent Industry
7. Rubber Industry
8. Sausage Production and meat packing Industry
9. Starch Industry , Paper Industry

Outstanding and rigid design criteria combined with excellent quality of workmanship of SHAKTI colloid mill automatically ensures superior end product. It is suitable for small, medium, as well as large batches of production.

Detailed Specification for Lab Colloid Mill (SCM)

  • Technical Specifications
  • Special Features
  • Construction
  • Operation
Hopper Capacity3 Ltr.
Output10 to 150 Liters/hr. Micron - 5 to 10
Motor1 H.P., 2850 R.P.M., 440 Volts, 50 Cycles, 3 Phase,AC
Teeth of Rotor & Lower
Stator for better Result.
70 nos.
Dimensions950 x 350 x 710 mm.
Floor Space400 mm x 510 mm
Net Weight40 kg
Gross Weight68 kg. Approx.
Case Dimensions in Inch29 x 23 x 39 in Inch [L x B x H]
  • Simple construction permits the ease of cleaning. Normally, flushing of water or suitable solvent cleans the mill. If required. The operating parts can be easily dismantled for through cleaning or sterilization.
  • Feed Hopper, recirculating pipe and mouth hopper are supplied as standard with SHAKTI Colloid Mill.
  • SHAKTI Colloid Mill is available in water Jacketed model also. This version is recommended for processing materials, which generate lot of heat during milling operation and are sensitive to heat.
  • All contact parts of the mill are made pf stainless steel.
  • Model with flameproof electrical fitting is available on request.

SHAKTI Colloid Mill is driven by a special vertical type-high speed motor, which along with stainless steel housing provides working area of the mill. Circular ring shaped stator assembly having two different tooth stages, and the conical rotor which is directly coupled with the motor shaft, are housed in the housing. The perfectly matched conical shape of the rotor and stator permits to axially adjust the grinding gap to an accuracy of 0.10 mm. The opening or closing of this gap is calibrated on a scale. One rotation of the adjusting ring corresponds to a grinding gap 0.5mm.

SHAKTI Colloid Mill the product is subjected to high shearing, cutting, and rubbing forces between two toothed surfaces. The product, while passing down the hopper, initially gets seized in the preliminary breaking drum where it is broken and thrown in to the centrifugal effect of the rotor rotating at a speed of 2800 RPM, the material is forced in to second tooth stage.

The tooth design of the grinding set causes powerful vibrations, which subject the particles with high degree of forces. Intense whirling multiplies the grinding and mixing effect. The process is continued till the material reaches the lowest grinding stage. The ground material continuously leaves the mill through the outlet pipe, if required, it can be recirculated.
