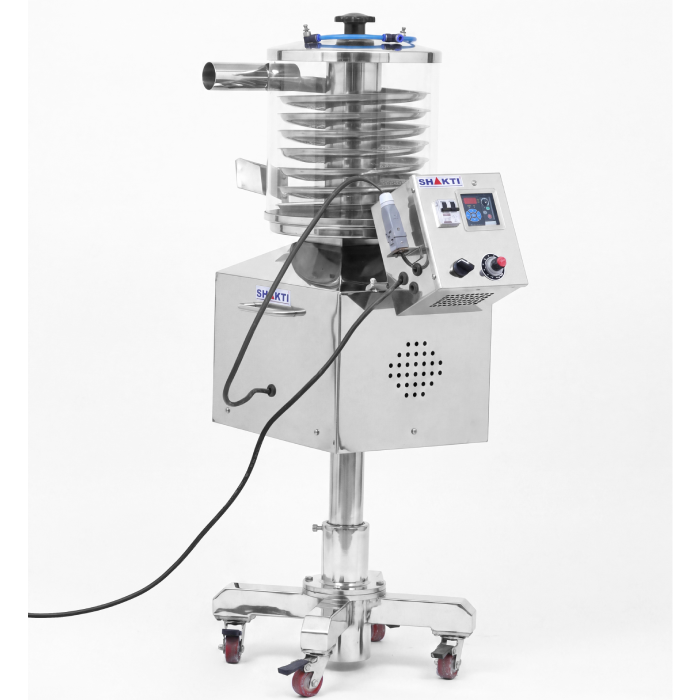

Elevating type De-Dust & De-Burning Unit (SEDD-500)

SEDD-500 is an economical, reliable High Tech Pharma Elevating type De dusting and De burring machine works on the principle of vibration, which causes elevating type movement of the Tablets. Tablets De-dusting are performed as the tablets pass over multilevel vibrating Spiral plates. The tablets vibrate and move upward around the perforated spiral plates, tumbling over several times, until they move up through discharge, this equipment developed to meet all current customer requirements in the Pharmaceutical Industry, offering outstanding production stability and quality results. It conforms to current GMP and the safety requirements.

Specifications Details
Model SEDD - 500
Tablet output (8mm dia) / hour 1,75,000 / hour
Height of Discharge Min. 905 mm / Max. 1045 mm.
Height of Charging chute Min. 720 mm / Max. 860 mm.
Min. Tablet Dia 5 mm
Max. Tablet Dia 25 mm
Transportation Duration Approx. 60 seconds
Gasket Food grade silicon rubber
Transparent Cover Acrylic
Intensity Amplitude of Oscillation adjustable by means of ACVF drive
De-dusting traveling distance 4.7 meters.
Vibratory Motor 0.18 kw – 2 qty
