About Bi – Layer Tablet Press (GMP) (Pilot 200)

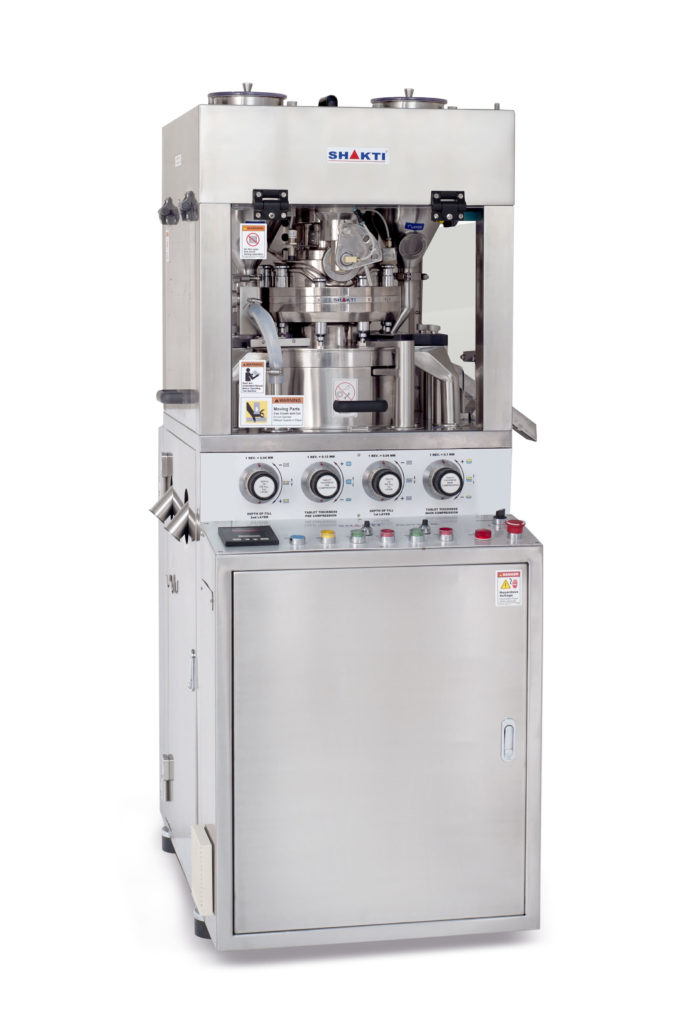

Tablet Press – PILOT 200 DL is a High Tech Double Layer & Mono layer Rotary Tablet Press is essential for R & D and small batch production. This Single sided R & D Double Layer Tablet Press fully conforms to GMP and the safety requirements, featuring versatility with a quick change of tooling.

For the suitable adjustment during double – layer tablet development, fully independent weight, height and hardness system are used for both the first and second layer. The Turret is driven centrally by a motor and Reduction gear box. The turret speed is adjusted by A.C. frequency drive. It’s available in
Regular Model D’ Tooling or B’ Tooling
Multi Tooling – D+B & DB

Detailed Specification for Bi – Layer Tablet Press (GMP) (Pilot 200)

  • Technical Specifications
  • Special Features
MODEL (Tooling)BDB + D
No. Of Station1197+7=14
Material Feeding system1st Layer Gravity Feeder &
2nd Layer Force Feeder
1st Layer Gravity Feeder &
2nd Layer Force Feeder
1st Layer Gravity Feeder &
2nd Layer Force Feeder
Max. Compression Load 1st Layer (Tons)20 kN / 2 Tons20 kN / 2 Tons20 kN / 2 Tons
Max. Compression Load 2nd Layer (Tons)45 kN / 4.5 Ton45 kN / 4.5 Ton45 kN / 4.5 Ton
Max. Tablets Dia. (MM)161919 For “D” Tooling
16 For “B” Tooling
Max. Depth Of Fill 1st Layer19 mm19 mm19 mm
Max. Depth Of Fill 2nd Layer8 mm8 mm8 mm
Pneumatic EjectionFor Sample weight check –
SHAKTI Dust Extraction Unit Required
For Sample weight check –
SHAKTI Dust Extraction Unit Required
For Sample weight check –
SHAKTI Dust Extraction Unit Required
Sampling Device for Weight Check1st Layer by pneumatic ejection1st Layer by pneumatic ejection1st Layer by pneumatic ejection
Turret Speed (RPM)3 to 303 to 303 to 30
Output Tablets/ Hour * [max]195001600012000
Output Tablets/ Hour * [min]198016201200
Both Hopper Capacity1.5 +1.5 kg1.5 +1.5 kg1.5 +1.5 kg
Main Electric Motor
(Driven through ACVF)
3 HP, 1440 RPM, 3 Phase3 HP, 1440 RPM, 3 Phase3 HP, 1440 RPM, 3 Phase
Force Feeder MotorRPM – (5-65) 1/8 HP, 3 PhaseRPM – (5-65) 1/8 HP, 3 PhaseRPM – (5-65) 1/8 HP, 3 Phase
  • The speed of the Turret is adjustable through ACVF variable drive system.
  • The Speed of the Force feeder Adjustable with A.C.V.F. Variable drives system.
  • All Electrical Controls on Touch Screen.
  • Excellent accessibility for quick cleaning and product conversion.
  • Turret – Central drive Mechanism with Powerful Gearbox.
  • Machine with Pre-Compression.
  • Double Compression Mechanism for Double Layer Tablet.
  • Dust Suction Nozzle Arrangement.
  • Tablet Thickness & Weight adjustment controls outside compression zone.
  • All critical parts made in CNC machines.
  • Turret Die plate & material contact parts are made of SS 316.
  • Three piece Turret with keyway to suites any shaped Tablet Punches.
  • Outside controls for quick setting of Tablet thickness & Weight adjustment.
  • Gravity feeding system for Easy charging of granules & minimum wastage of material.
  • Force Feeder system for Second layer.
  • First layer Pneumatic ejection for checking weight.
  • Totally enclosed. GMP model.
  • All Fasteners are of SS 304.
  • All Guards magnet catch with Stainless steel Covers.
  • All Bakelite Knobs Fixed with stainless steel threaded studs.
  • Lower cam track can change without lifting Turret & no need of any setting.
  • Charging Hopper with Powder Level window and material stop Cock facility.
  • Turret Guard with full height to cover wiper seal area.
  • Utilizes “TSM” or “EU” “B”, “D” and “BB” standard tool configurations.
  • Lower roll carrier Oil tray with SS 304 material.
  • All Electrical Components are CE approved.
  • Lower Punch Wiper seal with NT6/a is an Acrylonitrile Butadiene Rubber of Hardness Shore ‘A’ 88°, Temp range 40°C to 100°C, surface roughness static – 0.8 µm with corrosion resistant metal ring houses NBR element for smooth Lower punch operations.
  • Minimum 3 mm thickness tablet can be press.
  • Bottom Plate inside/outside Cladded with SS 304.
  • Turret & Cam Tracks Processed by Electrode less Nichol Plated (ENLP) for Long life.
  • Special R & D Purpose machine with Combined “B”, “BB” & “D” Tooling available.
  • Pressure Roller & Pins are processed with hard heat-treatment.
  • Low noise level.
  • Upper guard & Lower side guard interlocking for operator’s safety.
  • Miniature Circuit Breaker for over load Protection as a Safety Feature.
  • Electrical voltage & frequency can be provided as per customers’ requirements.
