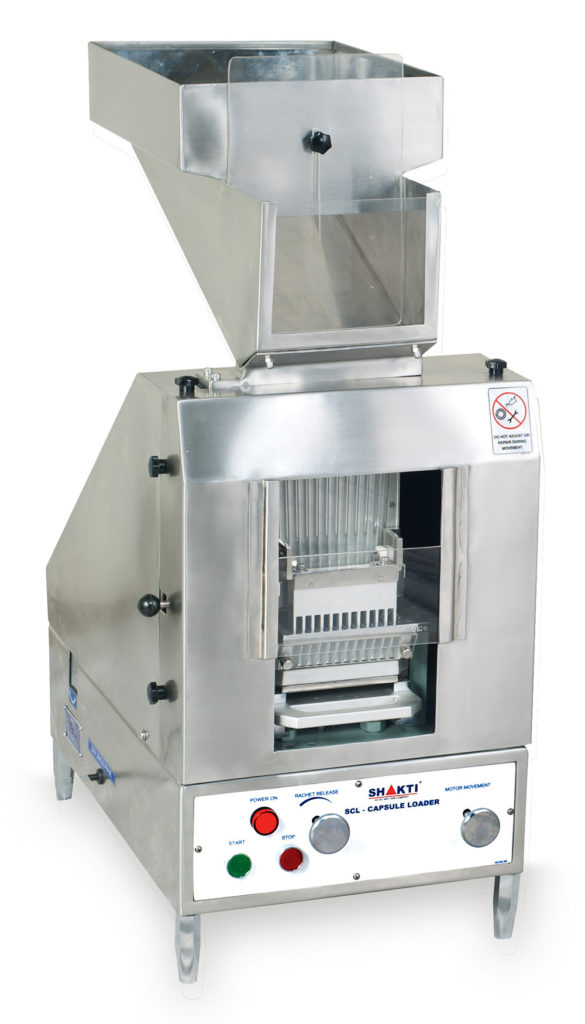

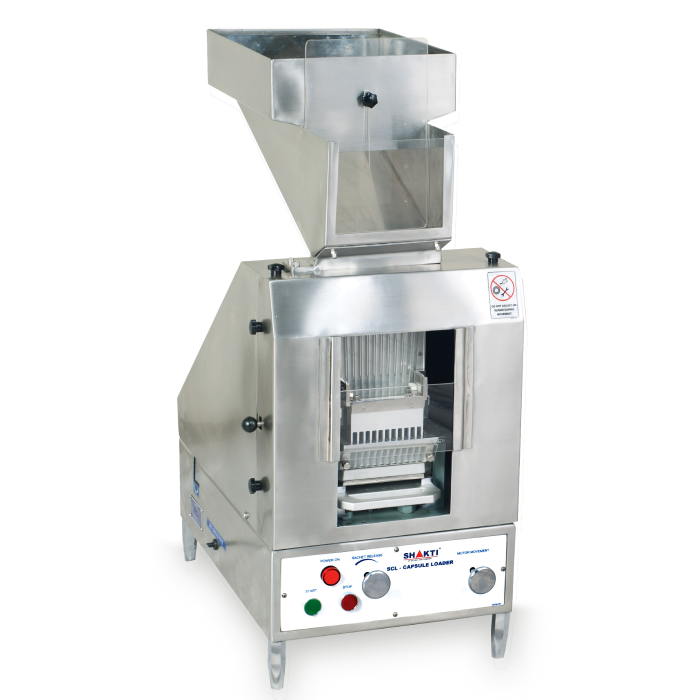

About Automatic Capsule Loader (SCL)

Capsule Filling Machine Hand Operated model manually operated hard gelatin capsule filling machine is the most widely used machine of its kind in the pharmaceutical industries. This machine is small and reliable for small units. Speedy and efficient operations are assured from numerous improvements introduced over many years of its wide and varied application in industry.

Table and partial filling attachments can be offered to suit filling of specific formulations. Precision manufacturing technique ensures inter changeability of size parts and spares.

  • Weight : 48 Kgs.
  • Case dimension : 508 x 508 x 460 H.

One loading machine can work with 3capsule filling m/cā€™s

Detailed Specification for Automatic Capsule Loader (SCL)

  • Technical Specifications
TYPESDETAILS
Output27000 Capsules Per Hour.
Loading SpeedOne 300 Holes Tray In 28 Seconds
Motor0.25 HP (0.19KW) - 1440 RPM
Electric Supply110 V Single Phase / 220 V 3 Phase 60 HZ
220 V Single Phase / 415 V 3 Phase 50 HZ
Dimensions640 x 450 x 965 (H) IN MM
Net Weight105 Kgs Approx.
Gross Weight175 Kgs. Approx

Please fill up below form and send us for details technical and quotation
