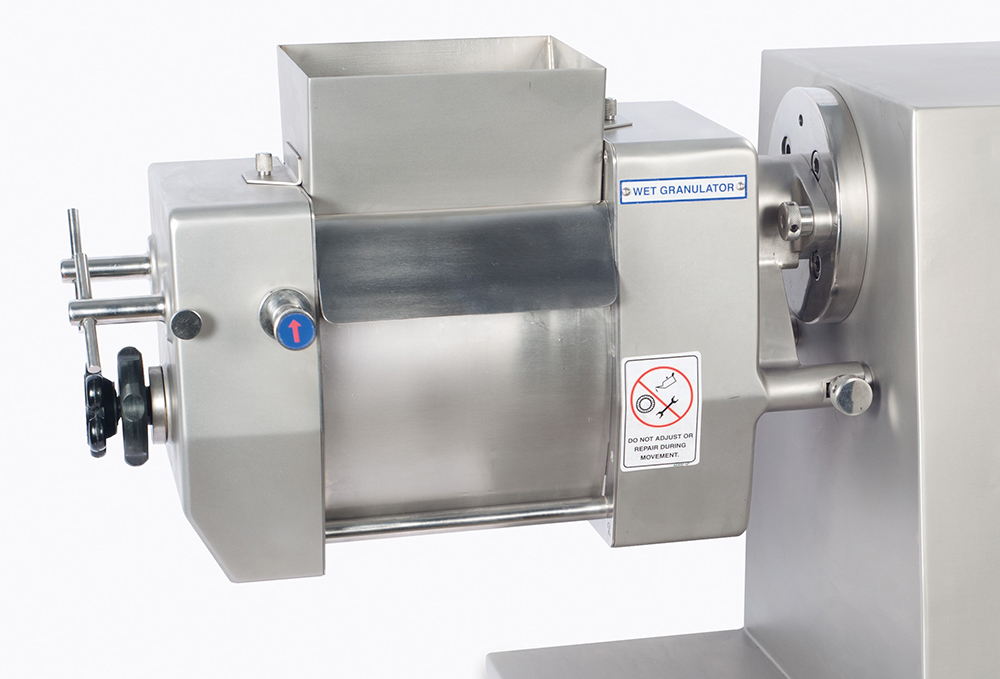

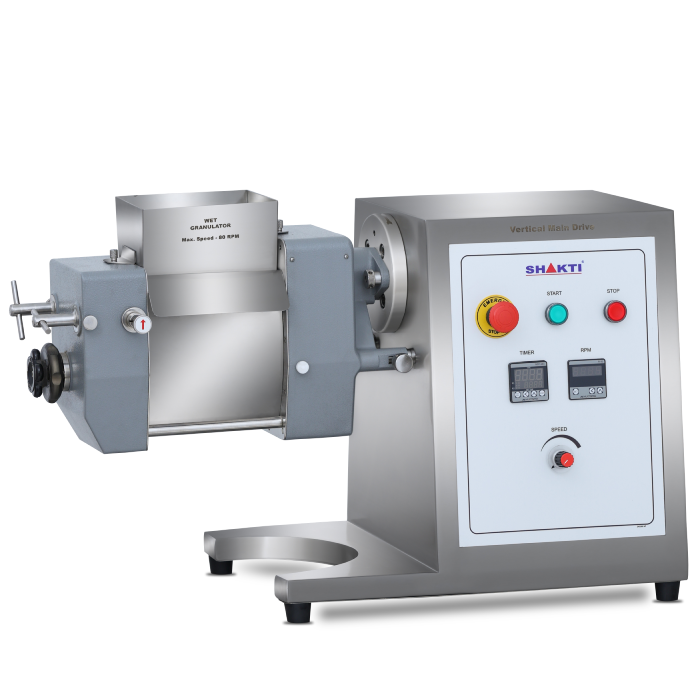

Wet Granulator – Oscillating Granulator
The SHAKTI Oscillating Granulator type SW is equipped with an oscillating rotor suitable for manufacturing wet granulates of various granule sizes. Sieves are easily exchangeable. Rotor, sieve and all parts coming into contact with the material are constructed of stainless steel. This apparatus is supplied as a standard with a 1.0 mm sieve. The capacity of the machine depends on the material and the mesh sizes of the sieve and is a maximum 30 kg per hour. This Attachment is Suitable to Attach in our All Main Drive.
| Specifications | Details |
|---|---|
| Model | SW |
| Working Capacity | 30 Kgs. / Hour. (Depends on mesh size) |
| With Equipment | 1.0 mm (18 US mesh) |
| Available Mesh size at Extra cost | 0.31 mm (45 US mesh) 0.63 mm (30 US mesh) 0.8 mm (20 US mesh) 1.0 mm (18 US mesh) 1.25 mm (16 US mesh) 1.6 mm (12 US mesh) 2.0 mm (10 US mesh) 2.5 mm (8 US mesh) 3.15 mm (6 US mesh) Other special sieves are available on request. |
| Dimensions L x W x H mm | 280 x 485 x 320 |
| Net weight | 19 kg |
| MOC contact parts. | SS 316L |
| Finished Quality type | Inside – 240 grit & outside - 150 grit |
