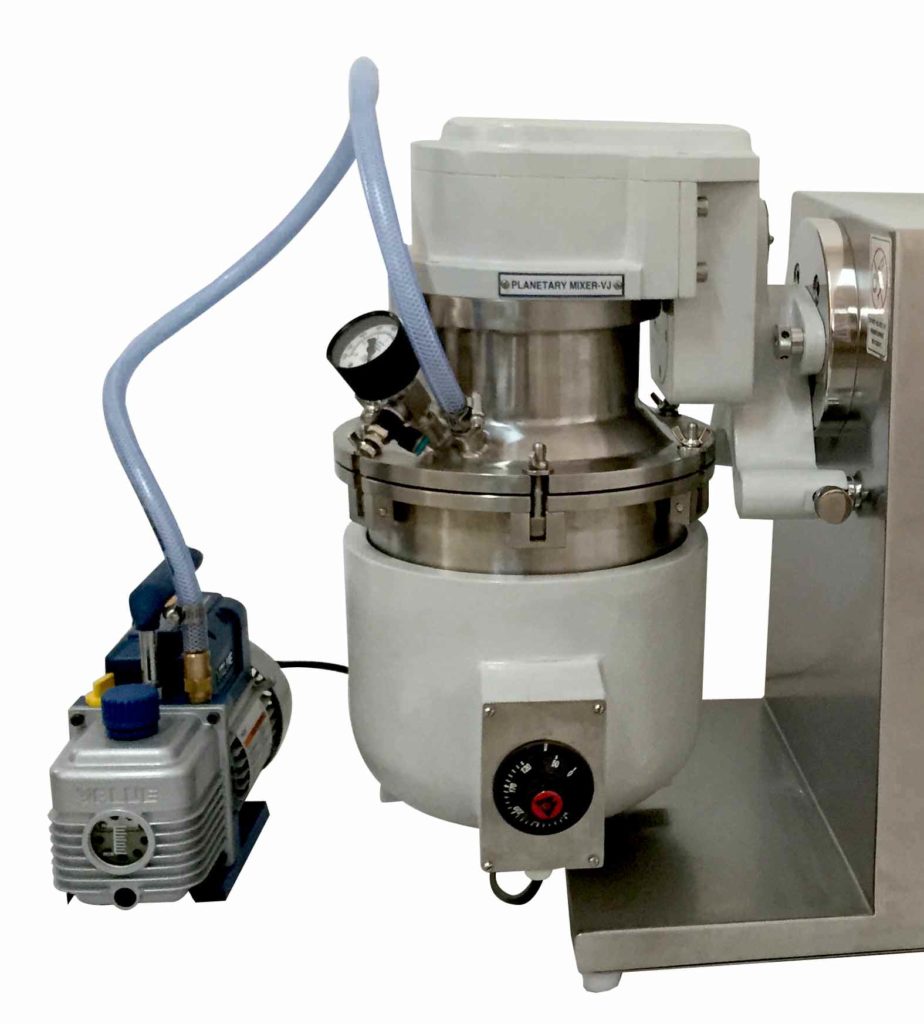

About Planetry Mixer Vacuum Jacketed (SPM + VJ)

An ideal mixer for creams, ointments, pastes, and liquids, but also for wetted powders in to water jacketed kettle. The sturdily constructed planetary gear can be equipped with various mixing and kneading attachments, made of stainless steel. Depending upon type of the material to be processed, a dough arm, and a mixing paddle.

Any material, which sticks to the walls of the kettle, is scraped continuously by the Teflon scrapper, which is shaped to fit exactly the kettle wall. Therefore, homogeneous mixing results in the shortest time. The vacuum jacketed Planetary Mixer is suitable to attach on our Both Main Drive.

Detailed Specification for Planetry Mixer Vacuum Jacketed (SPM + VJ)

  • Technical Specifications
  • Vacuum Pump Detail (GMP)
TYPESDETAILS
Gross Capacity (0.6 BD)5 Kg.
Working capacity (0.6 BD)3 Kg.
Vacuum Capacity400 MM.Hg / 16 In.Hg
Dimensions14' x 18" x 19" Inch
Net Weight25 Kgs.
Gross Weight42.5 Kgs.
Packing16" x 16" x 19" Inch
TYPESDETAILS
Max. Vacuum Capacity27” Inch / HG
Max. Flow15 LPM
Motor1/16 HP, 220v Single Phase
Vaccum Pump4 BAR
Dimensions [MM]240 L x 150 B x 175 H
Weight6.5 Kg.

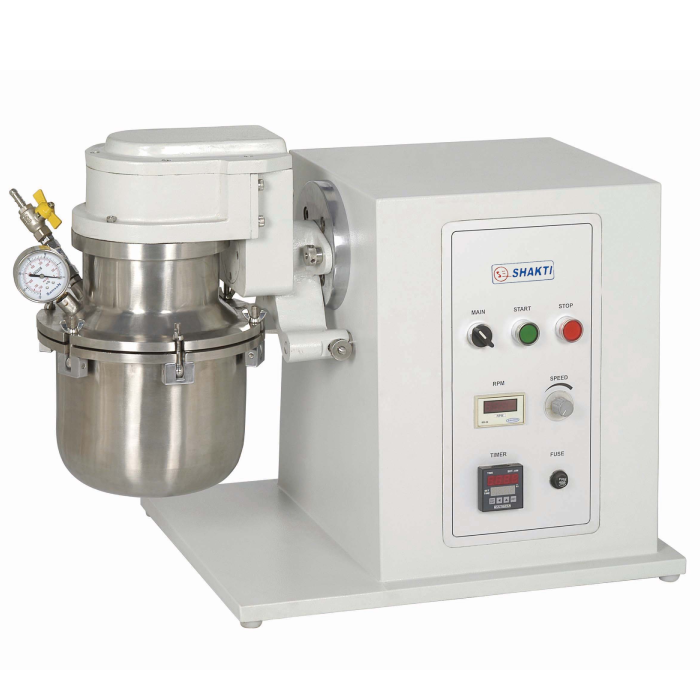

Planetary Mixer Vacuum Jacketed
