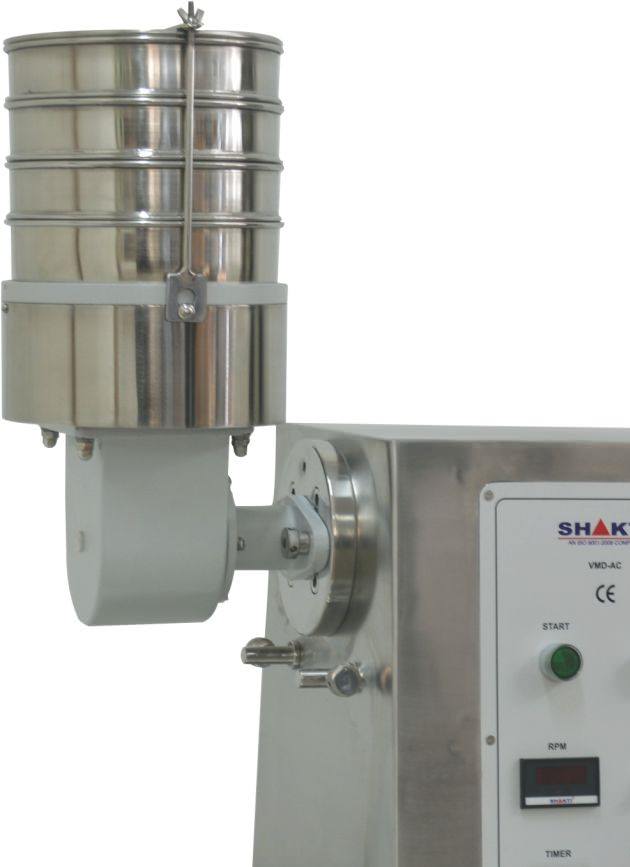

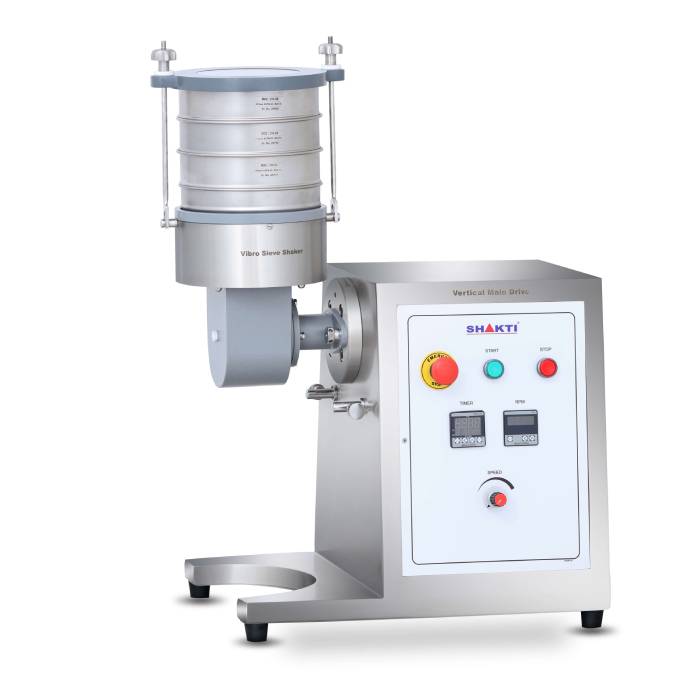

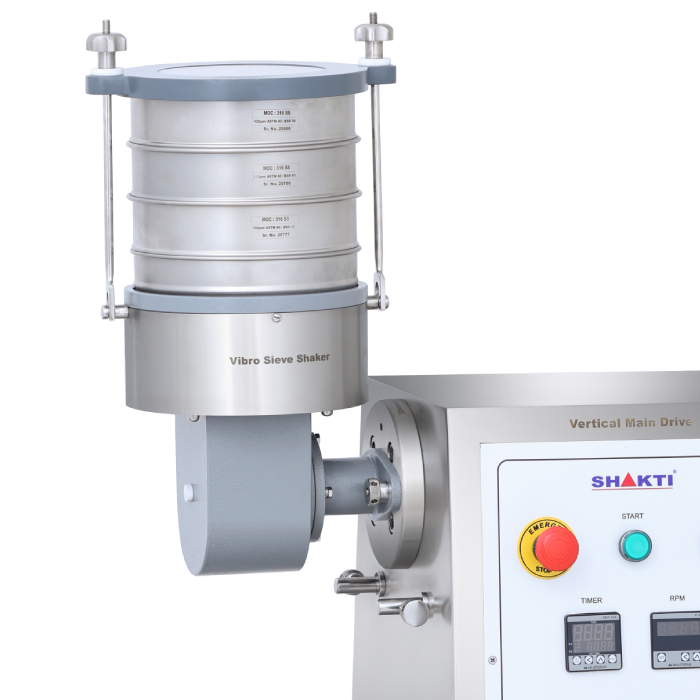

SVS-Vibro Sieve Shaker

SHAKTI Multi-layer Vibro Sieve Shaker designed and operates on the principle of gyratory motion. The vibration can be adjusted by changing the speed. Vibro Sieve Shaker is a circulatory screening attachment widely used for sieving, grading, sizing, screening of a range of solids from Pharmaceuticals, Food, Chemical, Dye, Cosmetic, and Plastic Powder Granules & Particles. Screening. Vibro Sieve Shaker allows for superior and fast separation of particles.

This unit suitable to attach on our main drives models SHMD-434 & SVMD-434.

Silent Features:

  • Quick & easy to attach the main drive.
  • Minimum maintenance and space.
  • Low noise operation.
  • Adjustable speed
  • Different Sieves can be fitted to the Sieve Shaker.
Summary
Article Name
Sieve Shaker
Description
Sieve Shaker on the reciprocating cam principle. The intensity of the vibration can be adjusted by changing the speed of the drive unit.

Technical Specifications of SVS-Vibro Sieve Shaker

TYPEDETAILS
Working capacity10 Kgs / hour. [Depends on Mesh sizes.]
Include Screen40,60,80 mesh each one & one receiver ( 200 mm Dia)
Sieves material SS 316
Dimensions10’ x 11”x 16” inch
Net weight10 Kgs.
Gross weight20 Kgs.
Packing12” x 12” x 18” inch
Other sieves are available on request at extra cost
AVAILABLE SS SIEVES SIZES – 5 MESH TO 200 MESH [A.S.T.M]
