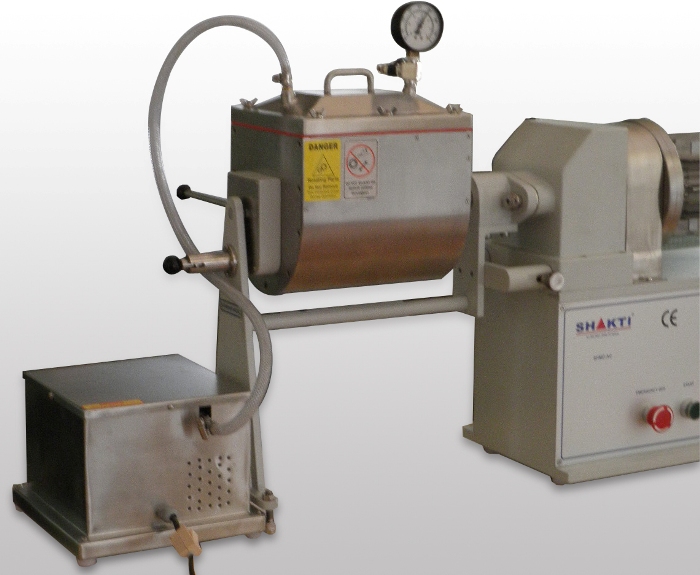

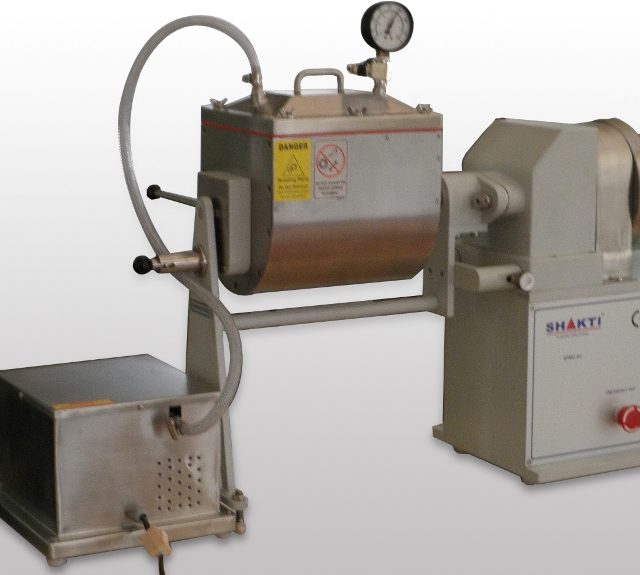

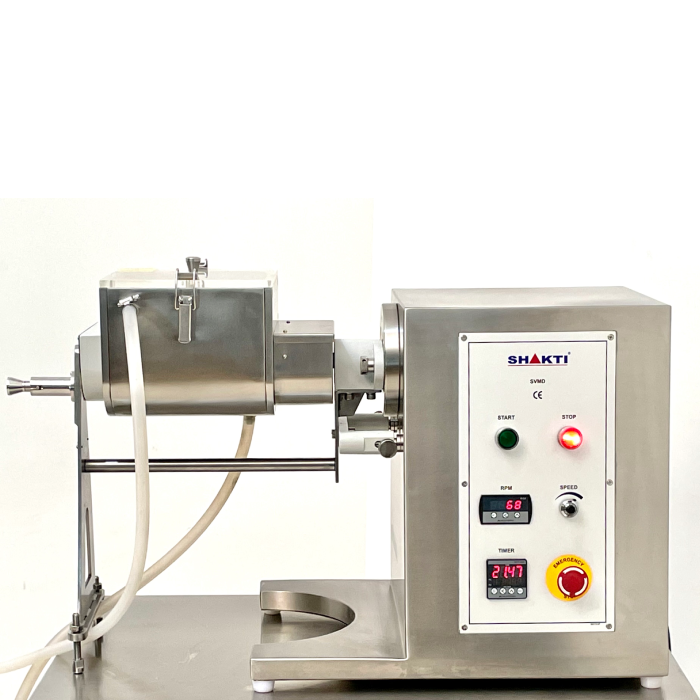

About Lab Kneader – Vacuum Jacketed (SLK-VJ)

Lab Kneader Vacuum Jacketed fitted on special design stand. Inside of the through two Z- shaped stirrers rotate towards each other at different speed. The special shape of the stirrers and the speed differential at which they operate shorten substantially the required mixing time. Stirrers and Bowl are made of stainless steel.

The unit had a capacity of 3 Kg. The Bowl can be delivered with a double jacket for cooling / heating with water or Electric Heating system. The Bowl opens on upper side with Vacuum tight top lid. The Bowl can be tilted for emptying or cleaning. This Attachment is Suitable to Attached in our Both SHAKTI Main Drive.

Detailed Specification for Lab Kneader – Vacuum Jacketed (SLK-VJ)

  • Technical Specifications
Bowl Gross Capacity4 Kg
Bowl Working Capacity3 kg
Vacuum Capacity350/14 MM-HG / IN-HG
Vacuum Pump1/16 HP, 220 v, Single Phase.
Net Weight36 Kg. [With Vacuum Pump]
Gross Weight64 Kg
Dimensions513 (L) x 250(B) x 632(H)
Packing21" x 39" x 37"
