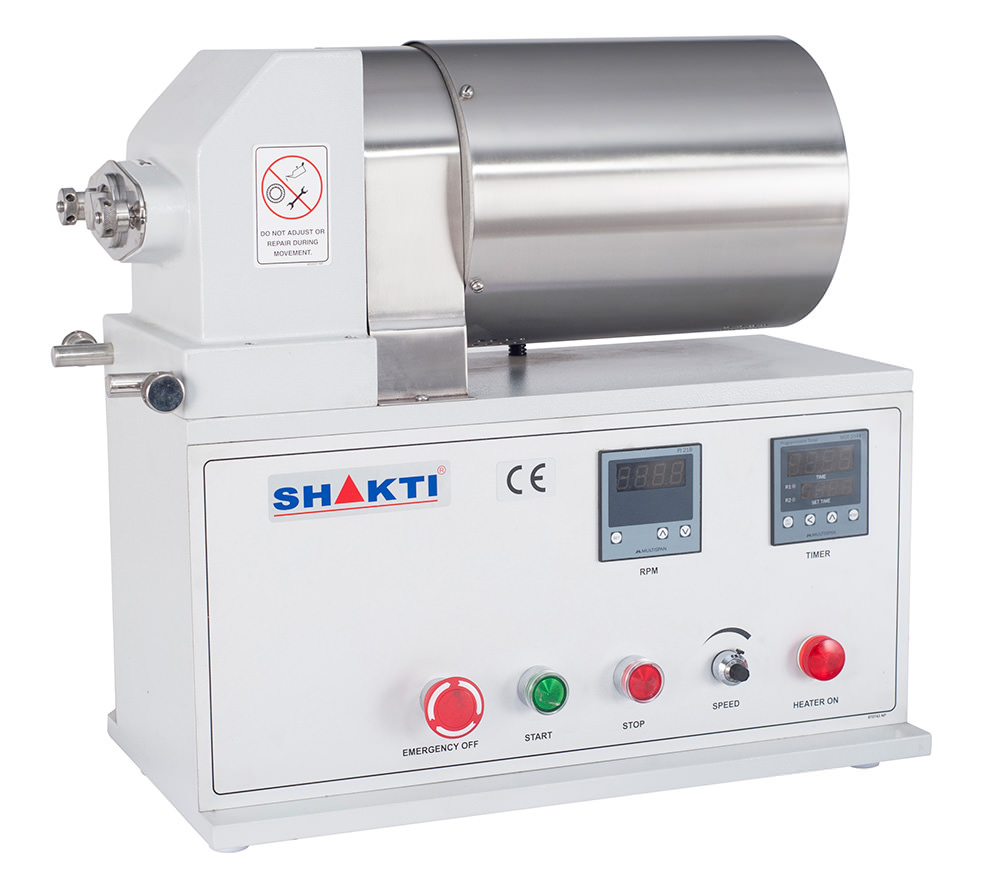

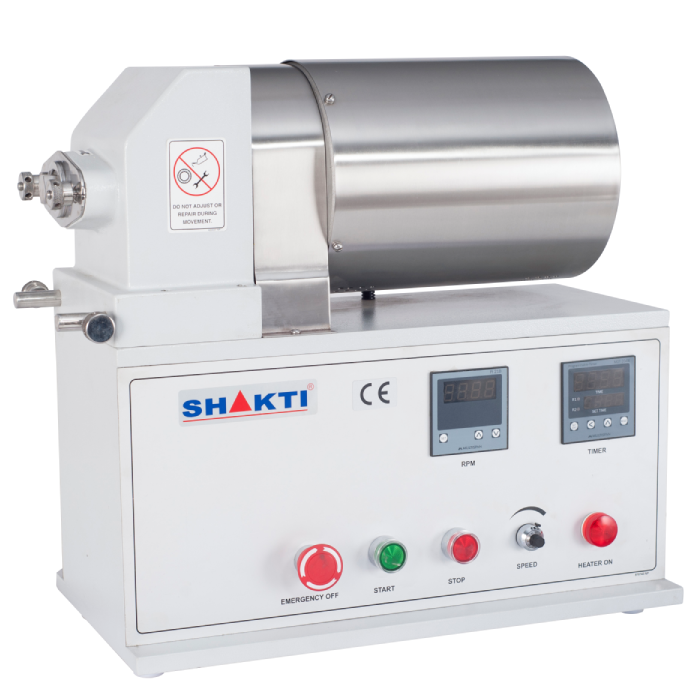

Horizontal Main Drive

The Horizontal Main Drive type SHMD-AC is the basic machine of the Shakti Pharmatech All-purpose equipment. All our Multi attachments units can be easily and quickly connected and disconnected to the main drive with the help of two quick locking and unlocking hand knurled knobs & it features a 1 HP, 230 V / 110 V, 50 Hz / 60Hz, Single Phase fitted with A.C DRIVE. The Main motor Drive is equipped with a very efficient & maintenance free gearbox with maximum torque.
The speed is variable and can be adjusted infinitely between 20 to 434 RPM working range by an electronic speed control. This is done via an electronic speed controller and the corresponding rpm is displayed digitally.
The Horizontal Main Drive also includes a Digital timer in order to set time-based operations. A separate 15 Amp. Power supply socket provided for attachments require heating system.
The cabinet of the Main unit is having Chemical Resistant Epoxy Powder coated finish

  • Power Supply will be provide as per customer’s Requirements.
Summary
Article Name
Horizontal Main Drive
Description
The Horizontal Main Drive is the basic machine of the Shakti Pharmatech which equipped with a very efficient & maintenance free gearbox with maximum torque.
Author

Technical Specifications of Horizontal Main Drive

TYPEDETAILS
Power supply230 v / 110 v, 50 Hz / 60 Hz. Single Phase.
Maximum output torque at continuous operation.49 Nm torque.
Timer adjustment0 to 999 minute.
Speed AdjustmentInfinitely
RPM20 Minimum to 434 Max.
Dimensions24” x 12” x 18 inch
Net weight52 Kg.
Gross weight80 Kg.
Packing size23” x 13” x 22” inch
