Dosing Filling for Liquids SDFL

Dosing Filling for Liquids SDFL

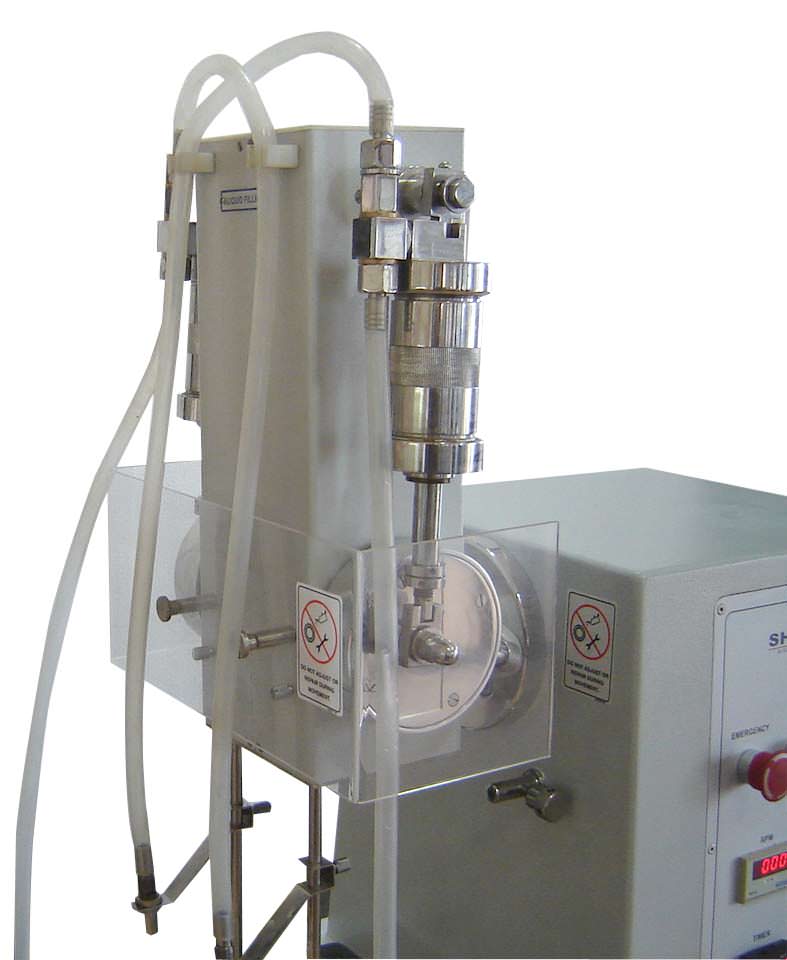

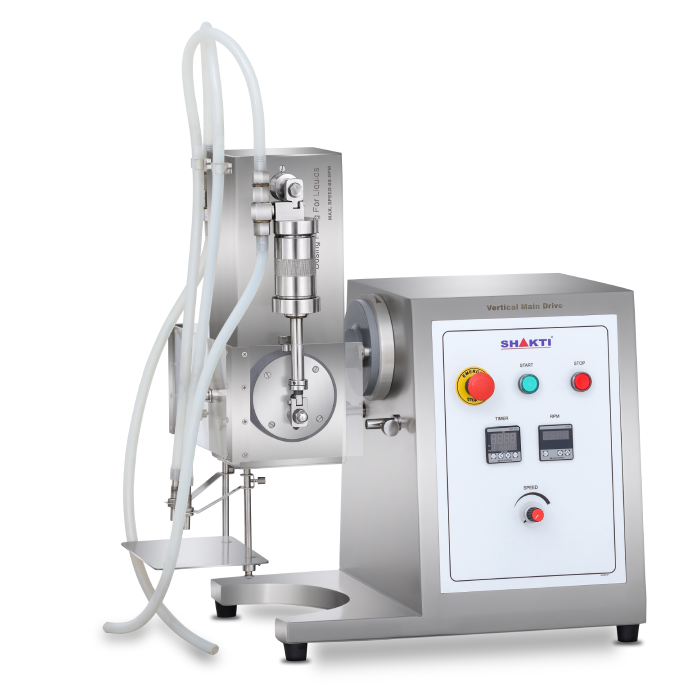

Silent features of Dosing Filling for Liquids SDFL machine are accurate dosing, drip free filling, fast disassembly of the pump and valves for easy cleaning. The Dosing Filler fills and dispenses all liquids with two pumps and valves made from stainless steel. It can be adjustable by 10 to 150 ml. If filling quantities of 300 ML Maximum are required, both pumps work on one common filling needle. Filling Needles are made of stainless steel and can be supplied for any container to be filled.

The capacity of the Machine is between 1000 and 2000 fills per hour. Filling range of this attachment is 10 ML to 150 ML. And all material contact parts are made from stainless steel. This attachment can be attached to our both main Drive.


Summary
Article Name
Dosing Filling for Liquids SDFL
Description
The Dosing Filling for Liquids SDFL fills and dispenses all liquids with two pumps and valves made from stainless steel.
Author

Technical Specifications of Dosing Filling for Liquids SDFL

TYPEDETAILS
Capacity of fills10 ML to 150 ML
Net weight26 Kgs.
Gross weight40 Kgs.
Dimensions26” x 15”x 14” inch
Packing28” x 20” x 17” inch
