Coating Pan

coating pan

Coating Pan

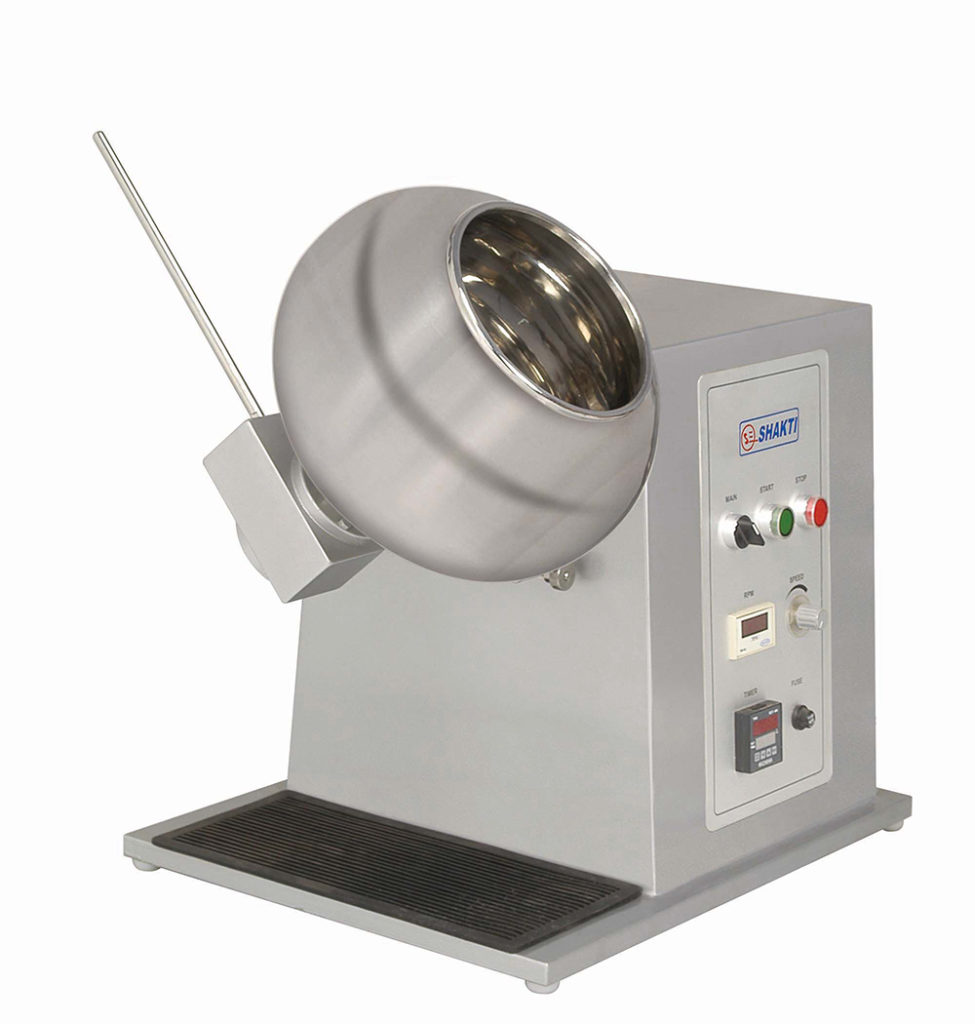

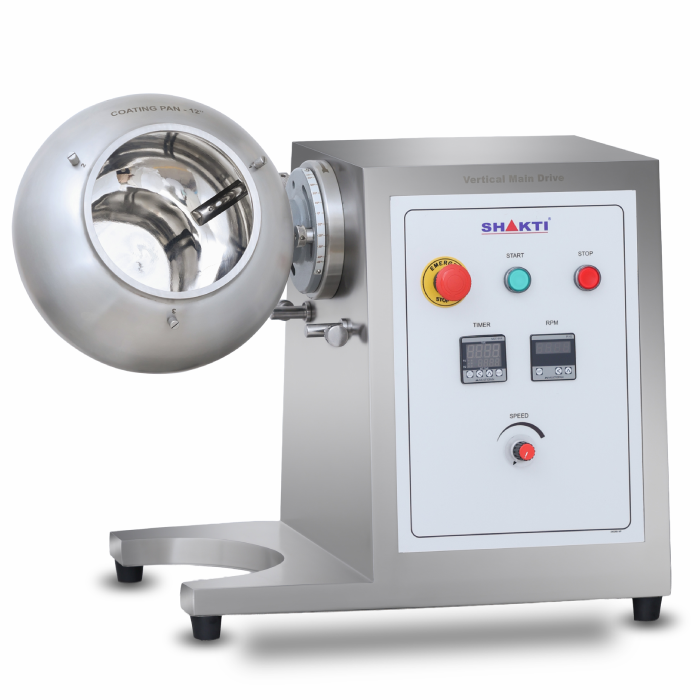

The Coating pan is used to produce uniform coating on tablets with the help of Baffles inside of pan. This can be mounting on the universal gearing and as a result different tilting angle can be set up to 45 Degree. It is also permits speed control at any desired RPM.The pan capacity is 9.5 Liters Approx. & Suitable to Attached in our Both Main Drive.

Summary
Article Name
Coating Pan
Description
The Coating pan is used to produce uniform coating on tablets with the help of Baffles inside of pan. The pan is Suitable to Attached in our Both Main Drive.
Author

Technical Specifications of Coating Pan

TYPEDETAILS
Gross Capacity9.5 Liters.
Working capacity2 to 3 liters.
Baffles inside Pan3 nos.
Dimensions12” Dia x 9” height with Flange.
Net weight4.8 Kgs.
Gross weight18 Kgs.
Packing13” x 13” x 12” inch
