About Ball Mill (SBM)

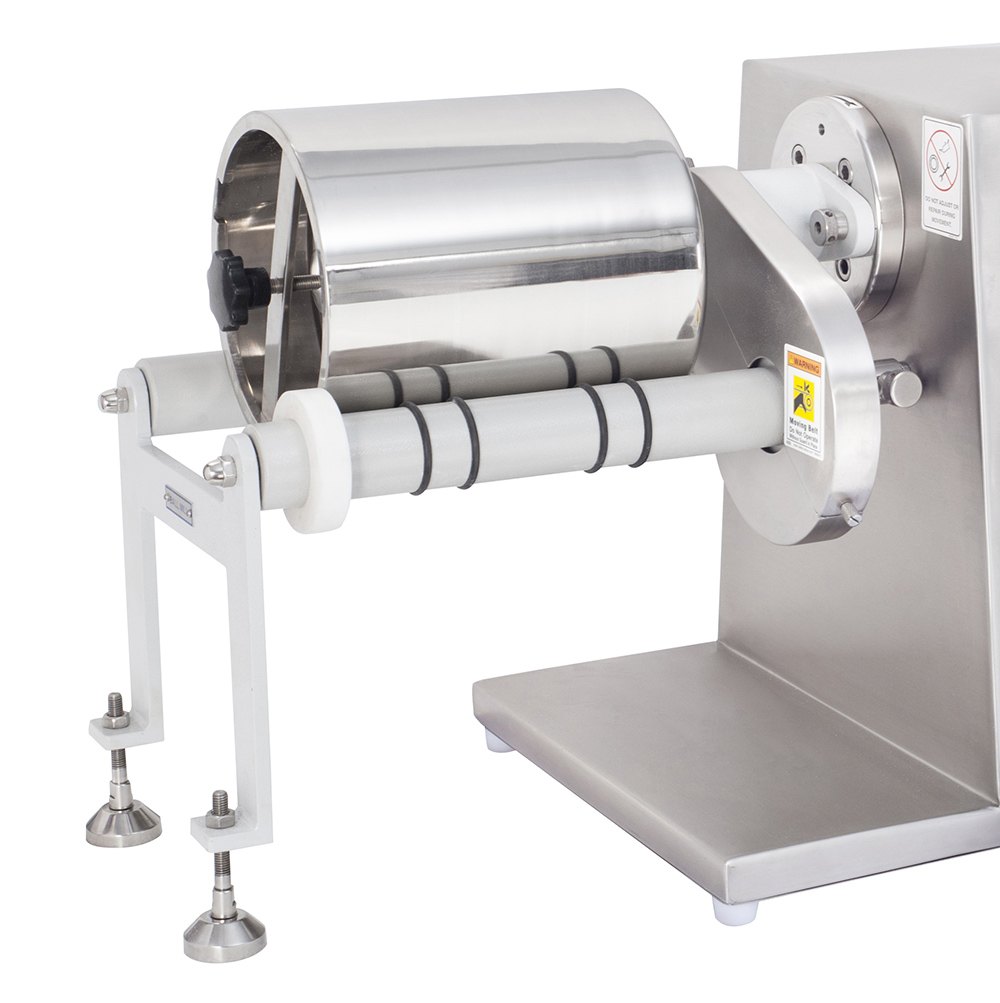

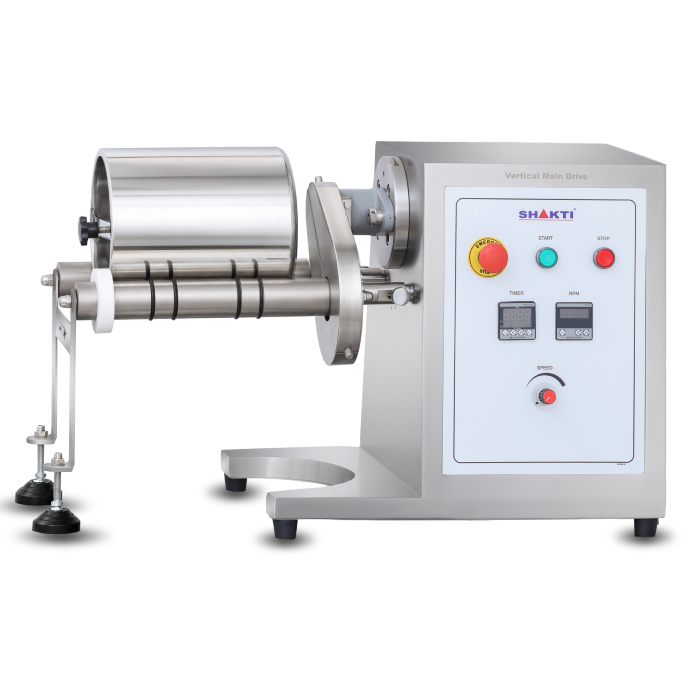

This Ball Mill – SBM is a very sturdy attachment and mainly used for grinding crystalline materials and for the mixing of dry materials. The Ball Mill consists of the transmission drive, stand of the Ball Mill and the Ball Mill it self. The jar is stainless steel and contains balls, which vary in diameter for 30 to 40 mm.

The jar rests on two spindles. One of which is driven spindle. The jar and balls can be sterilized in a water bath. This Attachment is Suitable to Attached in our Both Main Drive.

Detailed Specification for Ball Mill (SBM)

  • Technical Specifications
Gross Capacity of Drum5 Kgs.
Working Capacity2.5 Kg.
Net Weight20 Kgs.
Gross Weight38 Kgs.
Dimensions18" x 11" x 11" Inch
Packing23" x 14" x 14" Inch
