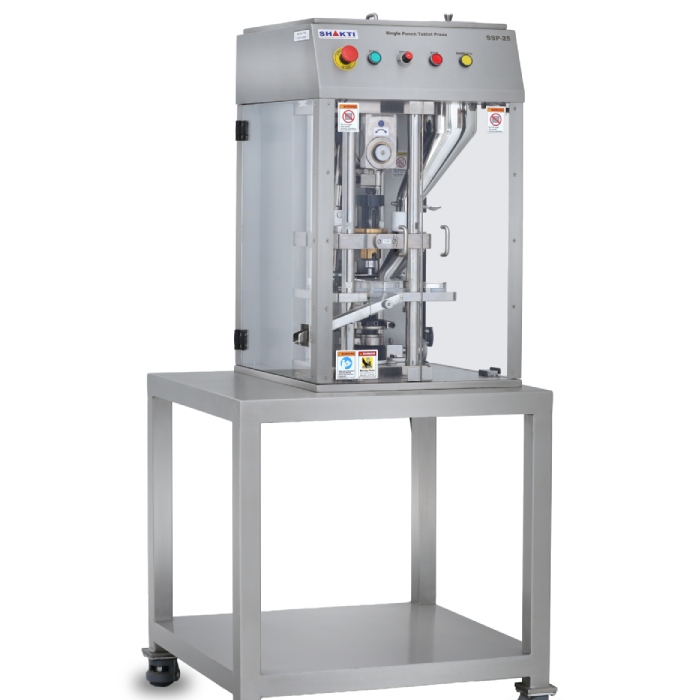

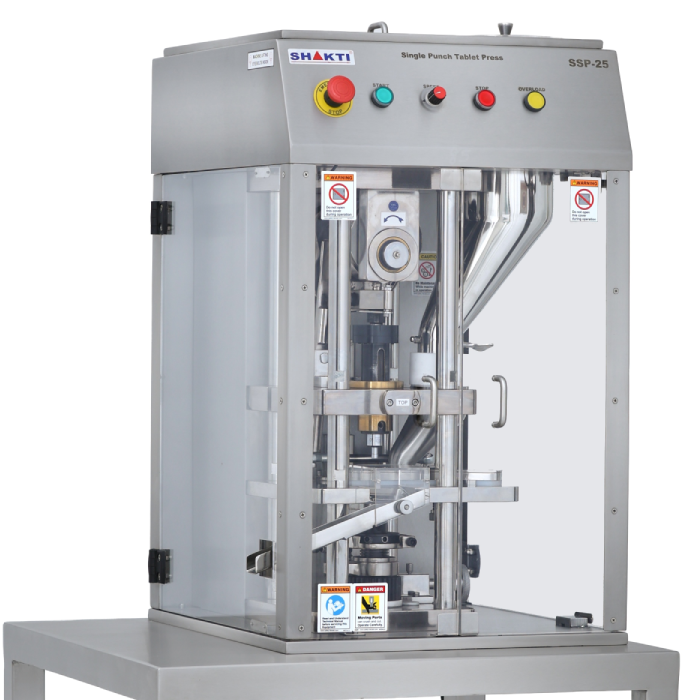

Single Punch Tablet Press – Model

For the development and small batch production of tablets, SHAKTI developed the single punch tablet press SSP with advanced technologies, single punch tablet machine can press round or irregular tablets from various and odd-shaped products. It operates automatically, i.e. the tablets are filled, pressed and ejected continuously.

Its feature; are high precision of filling, low noise, low consumption of material, and it works smoothly. The minimum consumption of lab material is just 200gm. Single Punch Tablet Press is a good machine for research & development in labs at hospitals and plants, used for small-scale production. All components are either covered with hard chrome plating or made of stainless steel AISI 316L or acrylic glass.

Specifications Details
Model SSP-25
Punch Heads 1
Output Tablet / hr 3600
Tablet Dia - Max 25 mm - Round
Depth of fill 18 mm
Tablet thickness 0.5 - 8 mm
Compression force 50 kn (5 ton)
Electric Motor 1.5 Kw
Machine Dimension 530 x 610 x 955 mm
Machine Dimensions with Table 710 X 710 X 1725mm
Net weight 230 kg
Gross weight 290 kg
