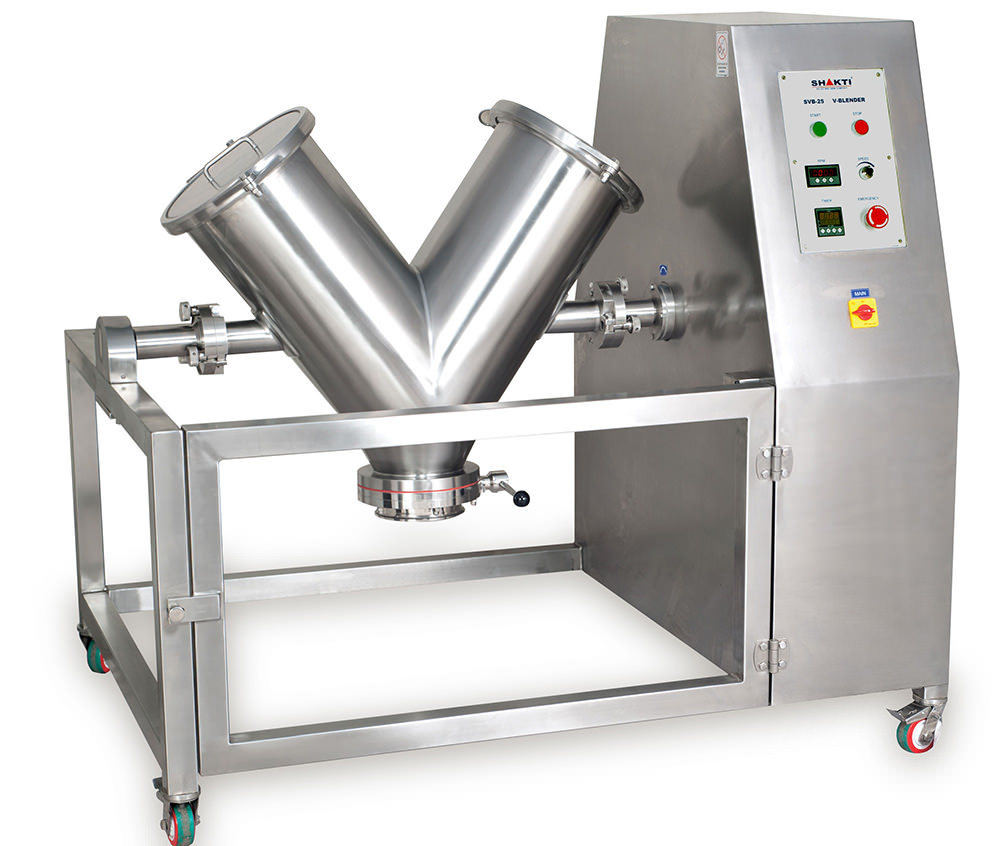

About R & D V – Blender (10-25 Kgs.) GMP Model (SVB)

The V-type blender is used to produce homogeneous solid-solid mixture. Mixing is a common process step in the manufacture of products for industries such as healthcare, pharmaceutical, food, chemicals, cosmetics, detergents, colorants, fertilizers and plastics.

Examples of materials or substances mixed in this way include pharmaceuticals, flour for confectionery, fish meal, refined or white flour, whole wheat flour, flour for coating, dextrin, enzymes, coffee, cocoa, milk powder, chocolate, gelatin, crème caramel and dessert powder, baby food, custard powder, starches, seeds, pigments, colorants, cosmetics, powdered or granulated plastics, fiberglass, etc.

Detailed Specification for R & D V – Blender (10-25 Kgs.) GMP Model (SVB)

  • Technical Specifications
  • Salient feature
  • Operating Principal
Gross Volume25 Kg (50 Ltr)50 Kg (100 Ltr)
Working Volume10 Kg
(Designed As Per 0.5 Bulk Density)
25 Kg
(Designed As Per 0.5 Bulk Density)
Product Contact PartsSS 316 LSS 316 L
Other PartsSS 304 Covered / CladdedSS 304 Covered / Cladded
Internal240 Grit Bright Polished.240 Grit Bright Polished.
External180 Grit Polished.180 Grit Polished.
Blender RPM02 To 2302 To 23
Charging PortCover With Tri Clover Clamp.Cover With Tri Clover Clamp.
Discharge PortButterfly Valve.Butterfly Valve.
GasketsFood Grade SiliconFood Grade Silicon
Safety GuardSS Pipe Guard Will Be Provided With Limit / Proxy Switch,
If Guard Is Open Then The Blender Will Not Run.
SS Pipe Guard Will Be Provided With Limit / Proxy Switch,
If Guard Is Open Then The Blender Will Not Run.
Motor With BrakeCrompton Greaves,
2 HP / 1440 RPM
Crompton Greaves,
3 HP / 1440 RPM
Reduction Gear BoxBonfiglioli MakeBonfiglioli Make
Power Supply415 V / 50 Hz / 3 Ph / A.C. or 220 V / 60 Hz / 3 Phase415 V / 50 Hz / 3 Ph / A.C. or 220 V / 60 Hz / 3 Phase
Overall Dimension In MM1015-L x 1440-W x 1295-H1200-L x 1600-W x 1450-H
Shipping Dimensions46" x 64" x 59"50" x 68" x 64"
Net Weight256 Kg.290 Kg.
  • Suitable for dry mixing of products in powder form.
  • ‘V’ shape gives sufficient continues movements to the granules & result in good quality.
  • Easy for loading and unloading.
  • Cover with tri clover clamp and food grade gasket.
  • Sturdy & High efficiency drive system with Castors for mobility.
  • Hygienic design-smooth & bright interior finish as per cGMP.
  • Short cycle times.
  • SS pipe railing & guard for safety.
  • Stop at discharge position facility.
  • Butterfly valve for easy discharging.

The unit consists of two cylinders arranged in a “V” shape with an angle of 70°. A manually actuated inspection and loading port is provided at the end of each cylinder, allowing access to its interior. The product outlet is located at the point where the two cylinders are joined and is fitted with a manually or automatically actuated butterfly valve. The geared motor and the bearing system are located within the lateral supports holding the blender body. The solids are introduced into the blender through the loading aperture. The mixing performance is of 50%, that is, with each turn of the blender, the product located in the two cylinders moves into the central common section, and this is repeated continuously.

The speed is not high, which makes this unit especially suitable for products that need to be maintained cold. The mixture is discharged through a hermetically closing butterfly valve which can be operated manually or automatically. The unit is provided with a guard rail with electrical safety to prevent the operator from accessing it when in operation. If anyone should gain access to the unit, for safety reasons, the operation will cease.
