About Pilot Scale Rotary Tablet Press – GMP (PILOT-300-STD/PLC/ SCADA)

Pilot 300 is an economical, reliable High Tech Pharma Rotary Tablet Press designed for Pilot to small scale production. This Single sided Tablet Press developed to meet all current customer requirements in the Pharmaceutical Industry, offering outstanding production stability and quality results. It conforms to current GMP and the safety requirements.

Detailed Specification for Pilot Scale Rotary Tablet Press – GMP (PILOT-300-STD/PLC/ SCADA)

  • Technical Specifications
MODELPILOT 300 - STDPILOT 300 - PLCPILOT 300 - SCADA
Tolling‘D’ Tooling‘B’ Tooling‘BB’ Tooling
No. Of Station202733
Max. Operating Load100 kN / 10 Tons65 kN / 6.5 Tons65 kN / 6.5 Tons
Pre Compression Load20 kN / 2 Ton20 kN / 2 Ton20 kN / 2 Ton
Output Tablets/ Hour * Min.600081009900
Output Tablets/ Hour * Max.7200097200118800
Max. Tablets Dia. (MM)251611
Max. Depth Of Fill20 mm17 mm15 mm
Turret Speed RPM5 to 60 (Infinitely Variable)5 to 60 (Infinitely Variable)5 to 60 (Infinitely Variable)
Force Feeder RPM5 to 60 (Infinitely Variable)5 to 60 (Infinitely Variable)5 to 60 (Infinitely Variable)
Main Electric Motor
(Driven through ACVF)
5 HP, 3.7 kw, 1440 RPM, 3 Phase5 HP, 3.7 kw, 1440 RPM, 3 Phase5 HP, 3.7 kw, 1440 RPM, 3 Phase
Gear Motor for Feeder
(Driven through ACVF)
0.25 HP, 1/3 Phase0.25 HP, 1/3 Phase0.25 HP, 1/3 Phase
Electric Supply220V 3 Ph, 60 Hz / 415 V, 3 Ph, 50 Hz220V 3 Ph, 60 Hz / 415 V, 3 Ph, 50 Hz220V 3 Ph, 60 Hz / 415 V, 3 Ph, 50 Hz

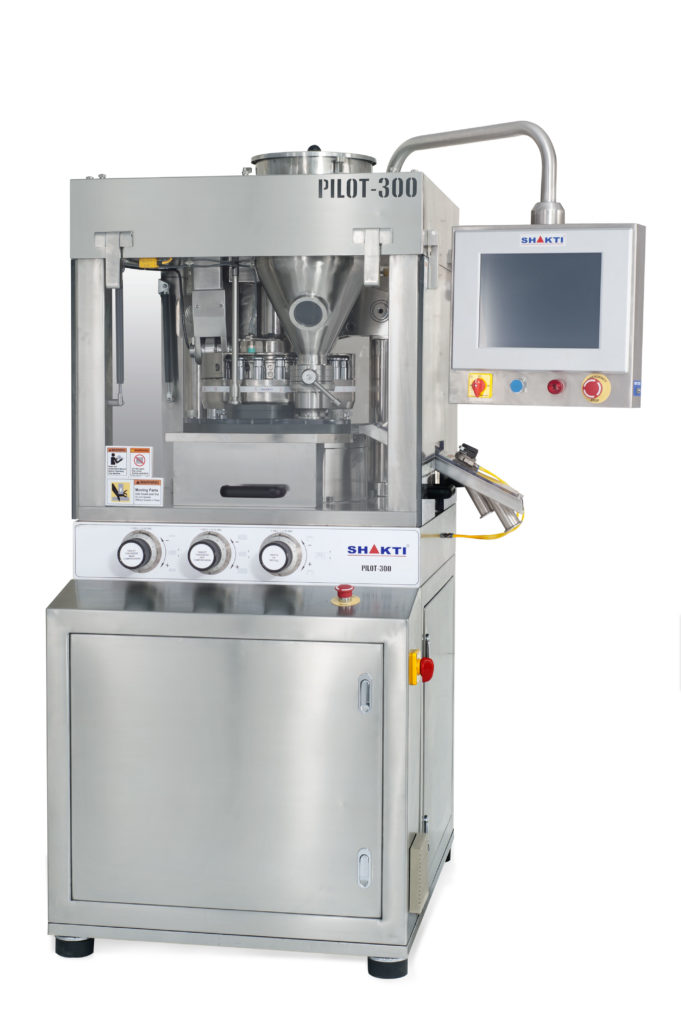

pilot-scale-rotary-tablet-press–gmp
