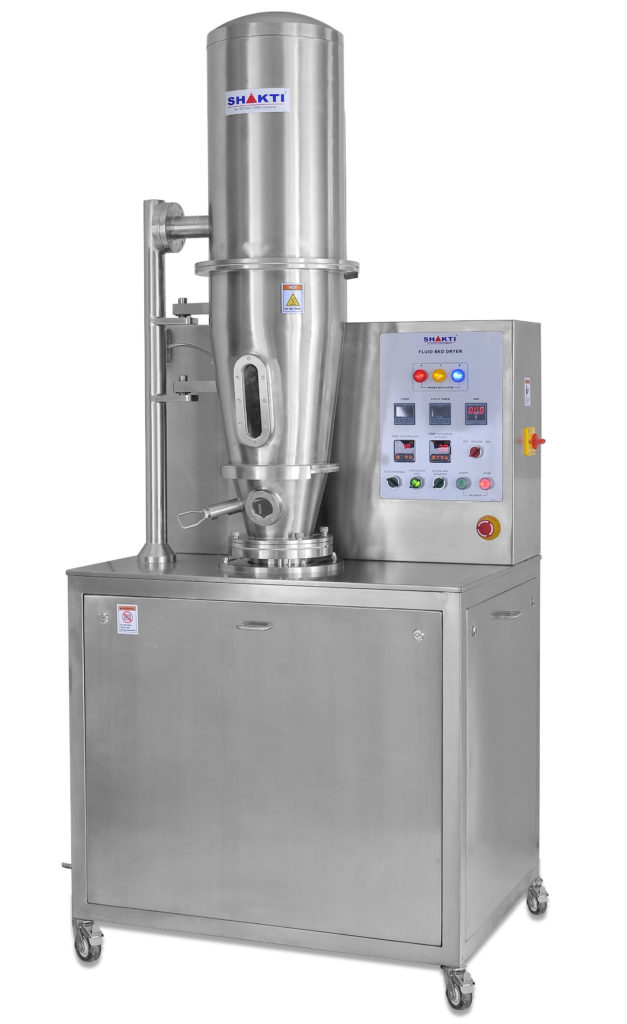

About Fluid Bed Dryer (1 TO 5 Kgs) R & D Model (SFBD-1, 2, 3, 5 Kgs)

SHAKTI Laboratory Scale Table Top Fluid Bed Drier offers an effective and efficient method for drying & granulating. It is invented keeping in mind the latest GMP norms with all contact parts AISI 316 Quality. By using modular construction and simplified design, we provide flexible installation.

PLC MODEL AVAILABLE ON DEMAND

The Process

It works on the principle of airflow .It takes time 20 to 45 minutes.

(Depends on products and percentage of moisturized)

The Fluid Bed Equipment have a bed of solid particles which are fluidized by passing a stream of filter air upward through a specially designed perforated sheet. The upward velocity of filter air is so maintained so as to slightly lift the solid particles and set them in motion. This motion can be utilized to bring about mixing as well as forward movement of the solids particles.

The filter air is heated and the process hot air evaporates the fluid and dries the solids. Fines get agglomerated to large size granules. The process is carried out continuously in batch size. The drying time and inlet air temperature can be set as per requirement of process and there is auto controlled for the same.

Detailed Specification for Fluid Bed Dryer (1 TO 5 Kgs) R & D Model (SFBD-1, 2, 3, 5 Kgs)

  • Technical Specifications
  • Salient Features
  • Optional At Extra Coast
  • Supporting Utility Required
ModelSFBD – 1 KGSFBD – 2 KGSFBD – 3 KGSFBD - 5 KG
Container Volume- Liters2 Liters3 Liters7 Liters11 Liters
Batch Capacity In
Kg At 0.5 Bulk Density
500 GR. To 1 KG1 TO 2 KG1 TO 3 KG1 TO 5 KG
Drying Temp in ° C35-80º C35-80º C35-80º C35-80º C
Motor In HP1 HP / 0.37 KW2 HP / 1.5 KW2 HP / 1.5 KW3 HP / 2.2 KW
Free Air Flow For
Inlet Air (m³/hrs) ±10%
200 m³/hour
120 CFM
350 m³/hour
210 CFM
350 m³/hour
210 CFM
350 m³/hour
210 CFM
Max. Vacuum ± 10%115 mbar 170 mbar170 mbar170 mbar
Heating Load Kw4 Kw8 Kw8 Kw8 Kw
Electrical Load / Supply415v/ 3Ph/ 50 Hz
220v/ 3Ph/ 60 Hz
415v/ 3Ph/ 50 Hz
220v/ 3Ph/ 60 Hz
415v/ 3Ph/ 50 Hz
220v/ 3Ph/ 60 Hz
415v/ 3Ph/ 50 Hz
220v/ 3Ph/ 60 Hz
Inlet Air Filter20 micron20 micron20 micron20 micron
Machine Dimensions
L X B X H
758x1024x2042 758x1024x20421185x1015x 23351185X1115X2435
Case Dimensions [Outer]35” x 33” x 76” 35” x 33” x 77” 42” x 50” x 97”42” x 50” x 97”
Net Weight254 Kg264 Kg 325 Kg375 Kg
Gross Weight Approx.350 Kg400 Kg475 Kg525 Kg
  • High Precision and effective drying technology.
  • Pilot scale table top model.
  • Design as per stringent cGMP Model.
  • All Contact parts of AISI Stainless Steel 316 Quality and non contact parts of AISI Stainless Stele 304 Quality.
  • Easy to install, operate, clean, convenient & user friendly.
  • Inbuilt design with Inlet hot air and exhaust air blower.
  • Turbine blower assembly for air suction.
  • Electric Heater of Stainless Steel with fins.
  • 20 micron filters for Inlet Air.
  • Sampling port on product container.
  • All gasket white silicon food grades.
  • Manual Damper for Inlet and Outlet Air duck.
  • Inspection glass window for process visualization.
  • Safe earthling arrangement.
  • Filter bag MOC-Satin.
  • Pneumatic shaking for filter bag.
  • Auto timer for batch processing.
  • Digital Temperature Controller with sensor for inlet air.
  • Digital AMP indicator on front panel.
  • DP across the product container.
  • DP across the filter.
  • Pneumatically Operated Filter bag Shaking.
  • Pneumatically Operated Outlet damper.

The Control panel fitted with Advanced PLC with Touch Screen HMI to Auto control of Process time, Inlet Air Temperature, Filter Beg Shaking etc. Also Emergency stop button provided on machine. The Electric panel is an inbuilt with MCB, Main power supply ON-OFF switch, Contactor and Relay.



DescriptionSpecification
Electrical Supply 3 Ph Model3 Phase 4 Wire With Switch Plug Unit Near To Equipment
Air Pressure6 bar
