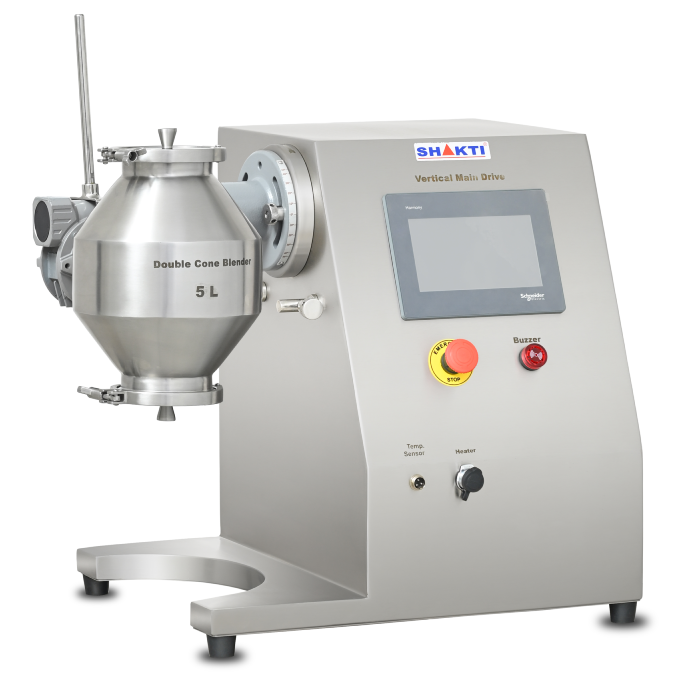

Double Cone Blender – 1, 3, 5 & 11 Kgs

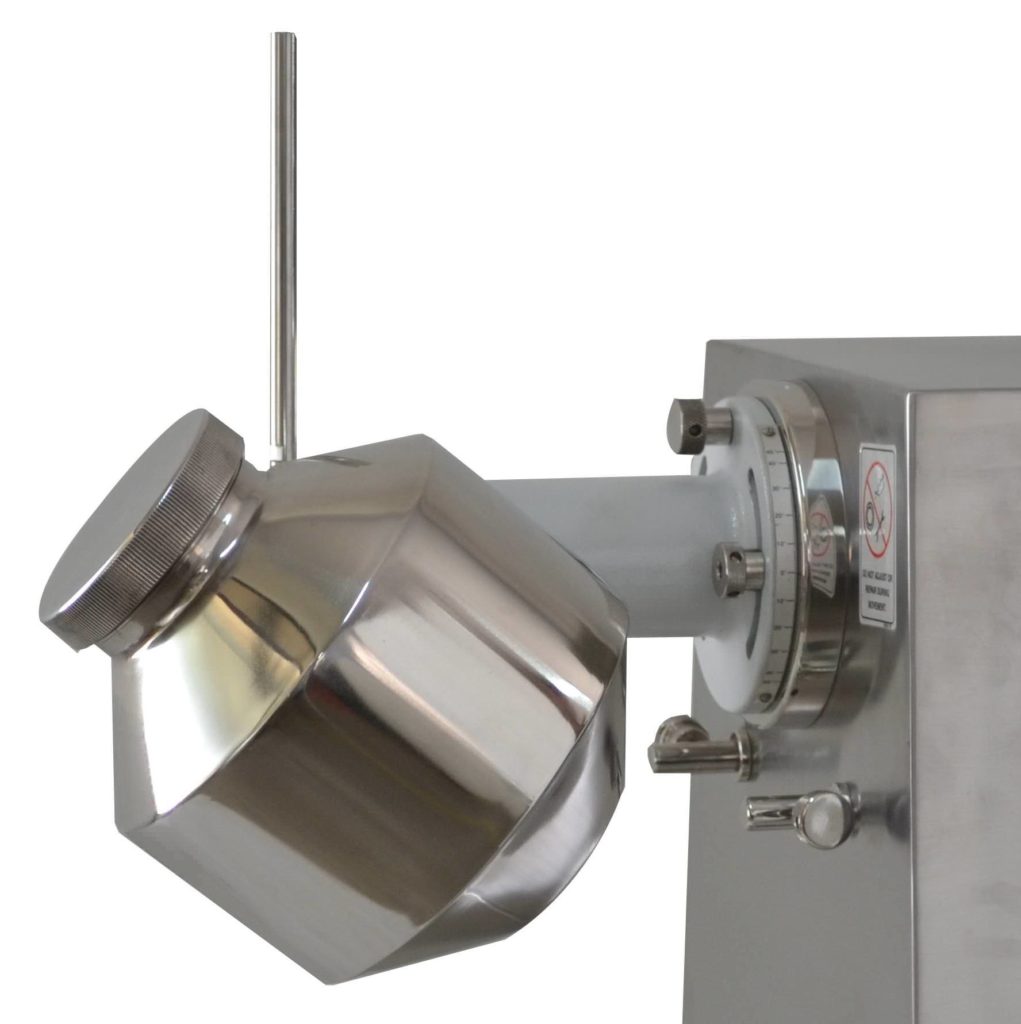

The SHAKTI Double cone Mixer Type SDC are most often used for the intimate dry blending of free flowing solids. This unit is used for rapid mixing of all types of free flowing powders and granules. The uniform, multidimensional arrangement of the mixer walls ensures good mixing. The vessel is manufactured from stainless steel and secured with TC clamps. This unit can be attached to the Universal Gearing. This attachment is suitable for our Main Motor Drive.
| Specifications | Details | Details | Details | Details |
|---|---|---|---|---|
| Model | SDC-1 | SDC-3 | SDC-5 | SDC-11 |
| Gross Capacity | 1 L (0.8 kg) | 3 L (1.8 kg) | 4 L (2.7 kg) | 11.5 L (6.5 kg) |
| Working Capacity 50% | 0.5 kg | 1 kg | 1.5 kg | 3 kg |
| Dimensions L x W x H mm | 175 x 135 x 165 | 175 x 213 x 212 | 283 x 200 x 238 | 337 x 300 x 316 |
| Net weight | 3.7 Kg | 4.3 Kg | 4.6 kg | 6.5 kg |
| MOC contact parts. | SS 316L | |||
| Gasket | Food Grade Silicone | |||
| Finished Quality type | Inside – 240 grit & outside - 150 grit | |||
Product Video
Double Cone Blender – 1, 3, 5 & 11 Kgs
Please fill up below form and send us for details technical and quotation
