About Planetary Mixer – Vacuum + Heating Jacketed (SPM – V + HJ)

An ideal mixer for creams, ointments, pastes, and liquids, but also for wetted powders in to water jacketed kettle. The sturdily constructed planetary gear can be equipped with various mixing and kneading attachments, made of stainless steel. Depending upon type of the material to be processed, a dough arm, and a mixing paddle.

Any material, which sticks to the walls of the kettle, is scraped continuously by the Teflon scrapper, which is shaped to fit exactly the kettle wall. Therefore, homogeneous mixing results in the shortest time. In this Combo Model(Vacuum+Heating)we Provide digital Controler in main drive The vacuum+Heating jacketed Planetary Mixer is suitable to attach on our Horizontal main Drive.

Detailed Specification for Planetary Mixer – Vacuum + Heating Jacketed (SPM – V + HJ)

  • Technical Specifications
TYPESDETAILS
Gross Capacity (0.6 BD)5 Kg.
Working capacity (0.6 BD)3 Kg.
Heating Capacity80 Degree Temp.
Vacuum Capacity400 MM.Hg / 16 In.Hg
Dimensions14' x 18" x 19" Inch
Net Weight25 Kgs.
Gross Weight42.5 Kgs.
Packing16" x 16" x 19" Inch

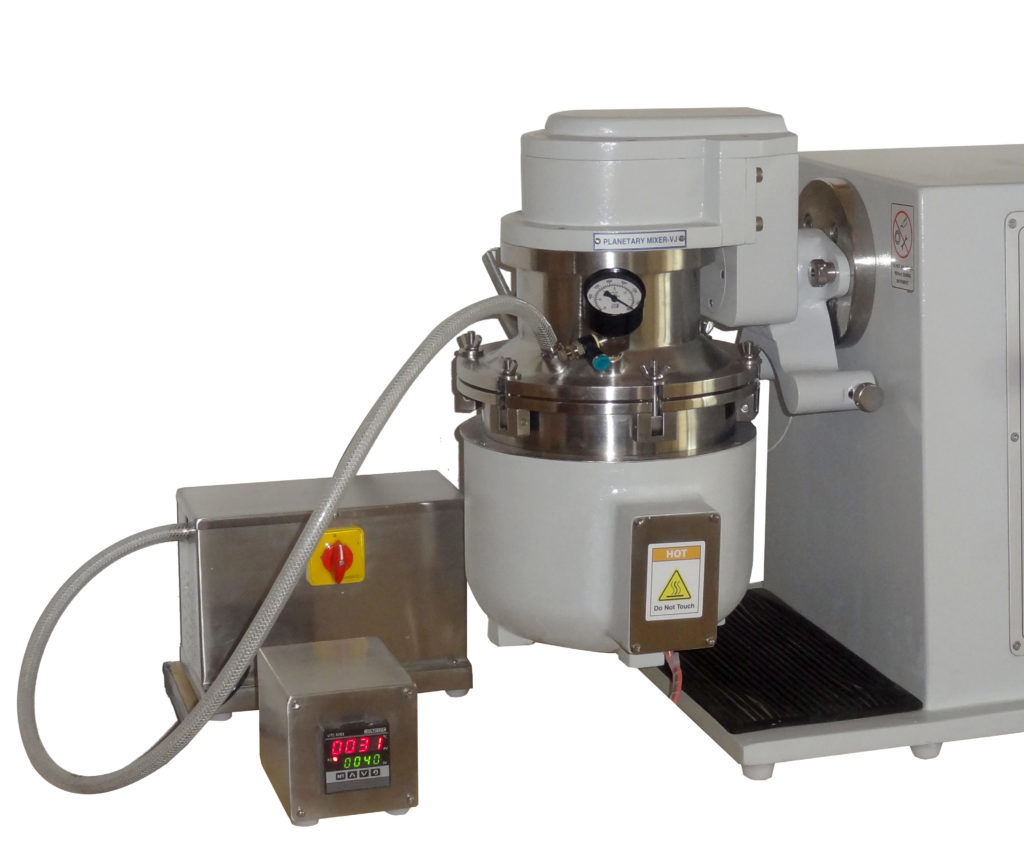

Planetary Mixer Vacuum Heating Jacketed
