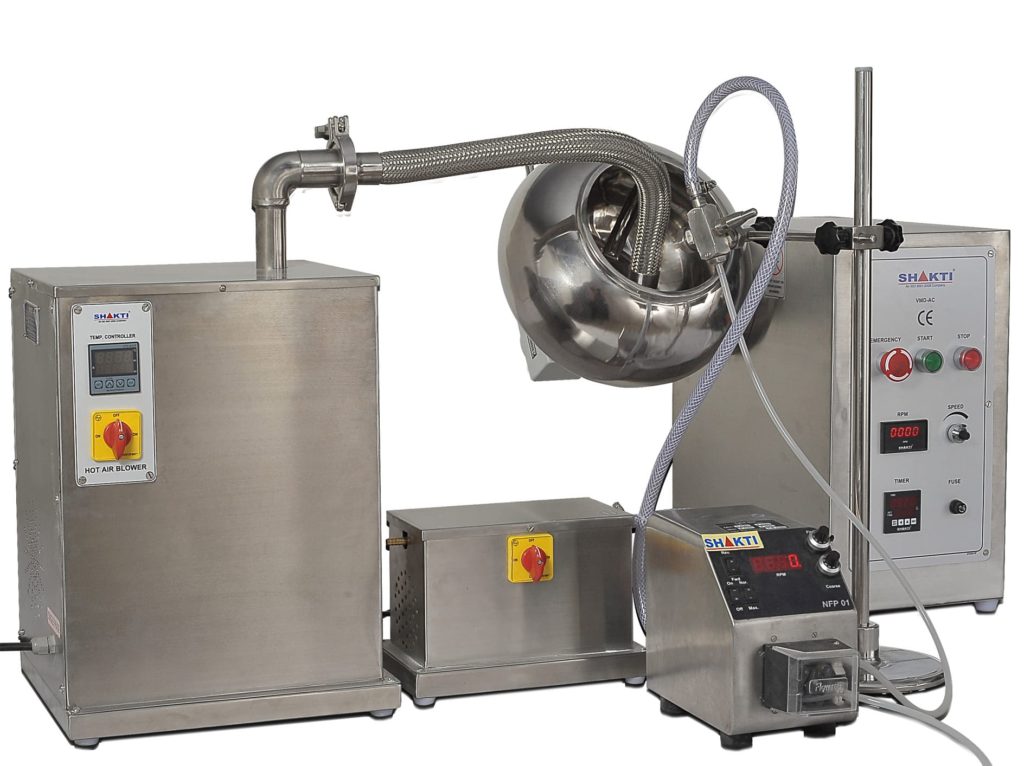

About Coating Pan with Peristaltic Pump, Spraying & Drying System (SCPH)

Coating With Peristaltic Pump, Spraying & Drying System : The Coating pan is used to produce uniform coating on tablets with the help of Baffles inside of pan .This can be mounting on the universal Gearing and as a result different tilting angle can be set up to 45 Degree.

It is also permits speed control at any desired RPM.The pan capacity is 9.5 Liters Approx. & Suitable to Attached in our Both Main Drive.

Detailed Specification for Coating Pan with Peristaltic Pump, Spraying & Drying System (SCPH)

  • Technical Specifications
  • Peristaltic Pump
  • Drying Blower & Spray Nozzle
  • Mini Compressor
TYPESDETAILS
Gross Capacity9.5 Liters
Working Capacity2 to 3 liters.
Baffles Inside Pan3 nos
Coating PanSS 316
Surface FinishMirror Finish – ra 0.10 micron ( Inside)
Matt Finish - 150 grit (Outside)
Dimensions12" Dia x 9" height with Flange
Net Weight4.8 Kgs.
Gross Weight18 Kgs.
Packing13" x 13" x 12" inch

Specifications Of Peristaltic Pump

TYPEDETAILS
Head:
Head TypeDual Rollers with Spring Loaded Track
Tube Size Supported1 mm to 4 mm bore size wall thickness 1.5 mm
Max. Flow Rate 100 ml / min (With water @250C, no pressure no suction)
Controls:
SpeedAdjustable from 1 to 100 RPM
Flow AccuracyBetter than 1%
Internal ModeON / OFF and DIRECTION Switch
PrimeMaximum at 100 RPM
(OPTIONAL)4 - 20 mA mp for RPM control (+ Red Black -)
Power Supply:
Supply Voltage230 VAC, 50 Hz
Fuse315 mA mp
Dimensions:180 (w) x 150 (h) x 293 (L)
Weight:5 Kg approx.

Specifications Of Drying Blower – Mini

TypeDetails
Power Supply220 v Single Phase
Digital Temp. Indicator30 to 110 Degree C
Heater1 Kw Power
Weight22 Kg.

Specifications Of Spray Nozzle Mini

TypeDetails
TypeFlat Fan Air Atomising With Cleaning Needle
Along with Swivelling Ball Join
Spray Angle±5º : 60º
Orifice Size1 MM Ø ORIFICE
MaterialS. S.316

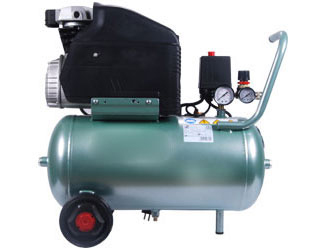

Mini Compressor For Coating Pan

TypeDetails
ModelSEC68SEC68
Power Source110 V AC 50 Hz230 V AC 50 Hz
Input Power1.46 kW1.3 kW
Output Power1.1 kW (1.5 HP)1.1 kW (1.5 HP)
Current15 A6 A
Tank Capacity24 L (6 gal.)24 L (6 gal.)
Maximum Pressure8 bar (116 PSI)8 bar (116 PSI)
Free Air DeliveryAt 1.0 Bar (14.2 PSI) - 135 L/ min (4.77 CFM)
At 1.0 Bar (14.2 PSI) - 93 L/ min (3.28 CFM)
At 1.0 Bar (14.2 PSI) - 60 L/ min (2.19 CFM)
At 1.0 Bar (14.2 PSI) - 135 L/ min (4.77 CFM)
At 1.0 Bar (14.2 PSI) - 93 L/ min (3.28 CFM)
At 1.0 Bar (14.2 PSI) - 60 L/ min (2.19 CFM)
Weight28 Kg28 Kg

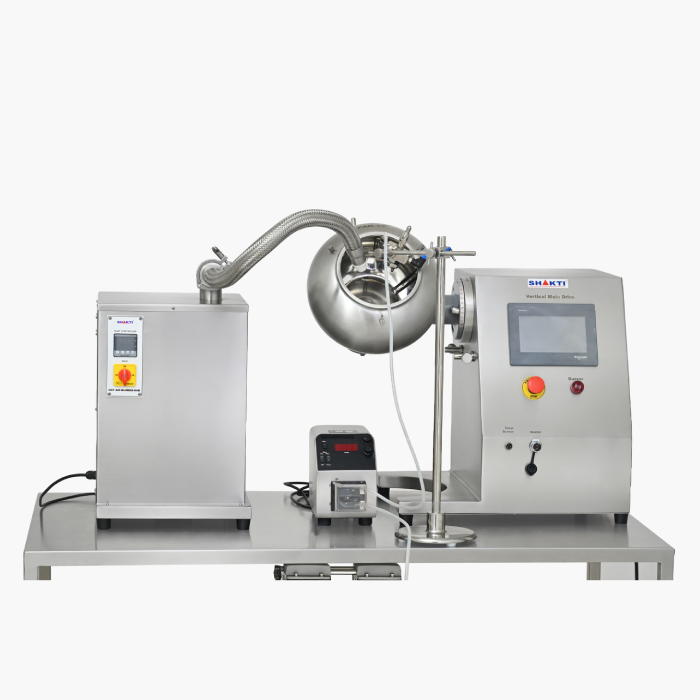

SCPH-Coating Pan with Peristaltic Pump, Spraying & Drying System
