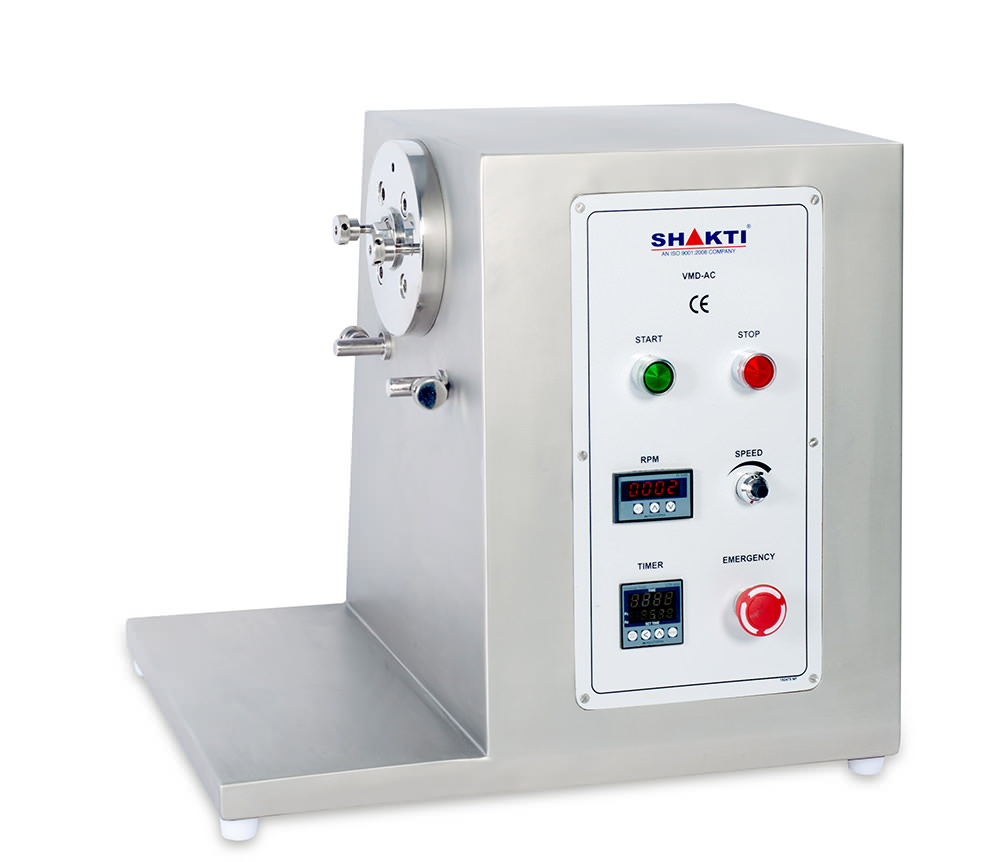

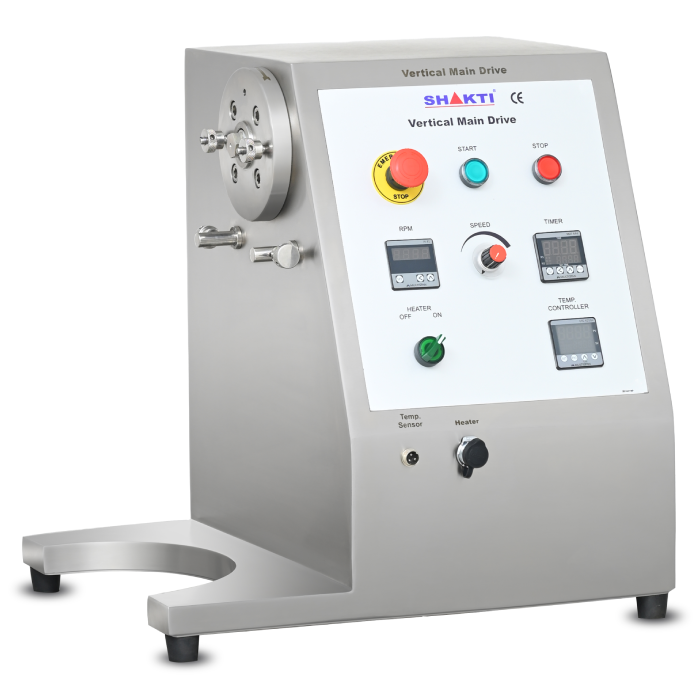

About Vertical Main Drive (SVMD – A.C.)

The Vertical Main Drive type SVMD-AC is the basic machine of the SHAKTI All-purpose equipment. All our Multi-attachments units can be easily and quickly connected and disconnected to the main drive with the help of two quick locking and unlocking hand knurled knobs & it features a 1 HP, 230 V / 110 V, 50 Hz / 60Hz, Single Phase with A.C DRIVE fitted. The Main motor Drive is equipped with a very efficient & maintenance free gearbox with maximum torque. The speed is variable and can be adjusted infinitely between 10 to 434 RPM working range by an electronic speed control.

This is done via an electronic speed controller and the corresponding rpm is displayed digitally. The drive also includes a Digital timer in order to set time-based operations.

Detailed Specification for Vertical Main Drive (SVMD – A.C.)

  • Technical Specifications
SpecificationsDetails
Power Supply230 v / 110 v, 50 Hz / 60 Hz. Single Phase
Maximum Output Torque at Continuous Operation52 Nm
Timer Adjustment0 to 999 minute
Speed AdjustmentInfinitely
RPM20 Minimum to 434 Max
Dimensions23" x 18" x 19" inch
Main Body & FlangeSS 304
Surface FinishMatt Finish - 150 Grit (Outside)
Net weight88 Kg
Gross Weight88 Kg
Packing size25" x 22" x 22" Inch
