Triple Roller Mill – STRM

Triple Roller Mill – STRM

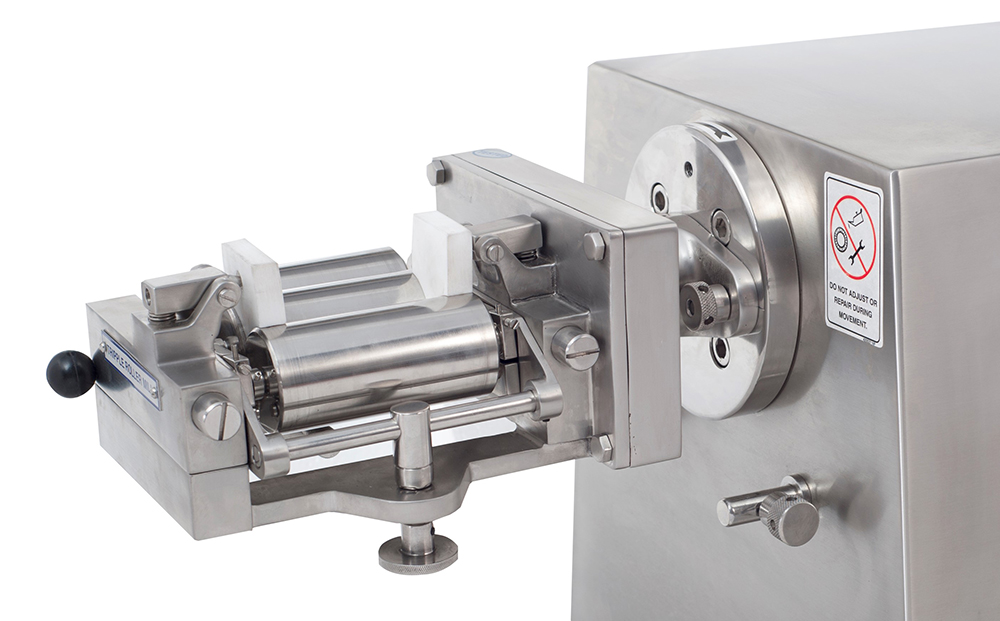

Triple Roller Mill – STRM is used in the preparation of ointments, salves, dough and similar products. The hourly production is from 2 Kgs. To 12 kgs. depending upon the constituency of the material. Three hard stainless still roller, which are 110 mm long, and 50 mm diameter produce the Rolling action.

Two outer rollers are spring supported to eliminate the possibility of damage to the rollers or to the operating mechanism. The space between the rollers is adjustable by turning one thumbscrew.

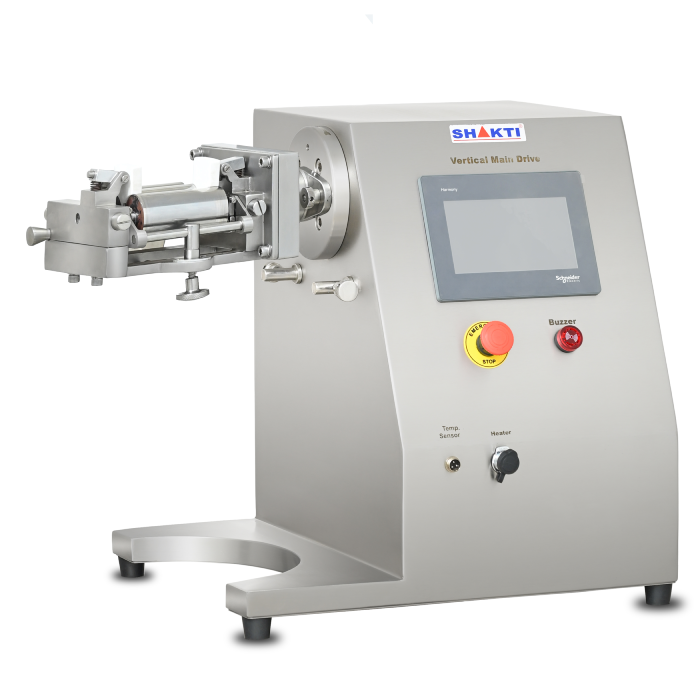

This Attachment is Suitable to Attached in our Both Main Drive.

Summary
Article Name
Triple Roller Mill
Description
Triple Roller Mill – STRM is used in the preparation of ointments, salves, dough and similar products. The hourly production is from 2 Kgs. To 12 kgs.
Author

Technical Specifications of Triple Roller Mill – STRM

TYPEDETAILS
Working capacity2 to 12 Kgs.
Net weight12 Kgs.
Gross weight20 Kgs.
Dimensions11.5’ x 10”x 6” inch.
Packing13” x 12” x 8” inch.
