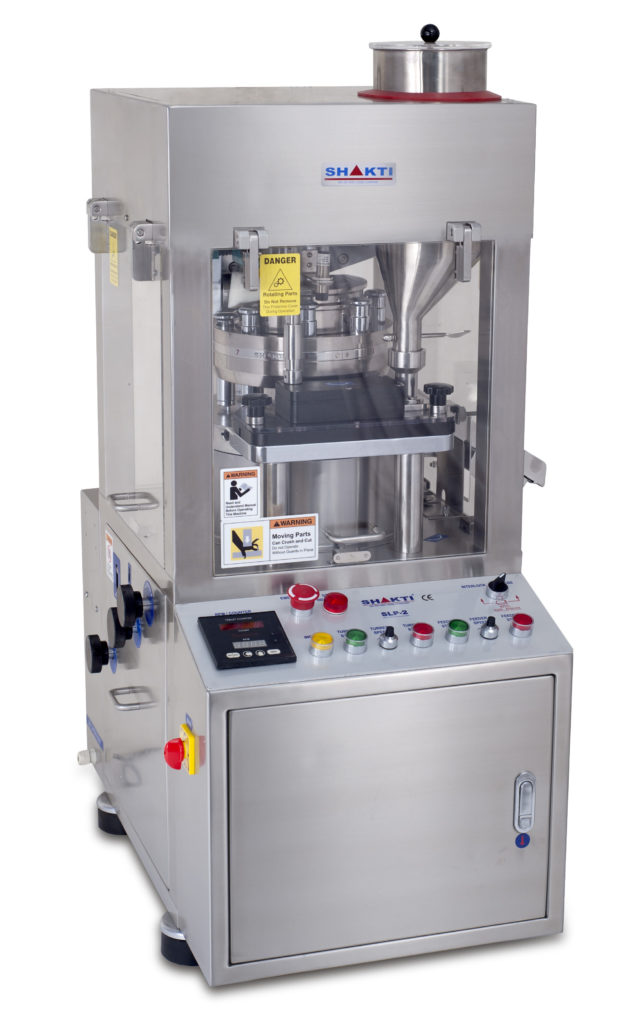

About Single Rotary Tablet Press (Lab Press-2) (SLP-II)

Lab Press LP- II is a High Tech Rotary Tablet Press in table-top design for R & D and small batch production. This Single sided R & D Tablet Press fully conforms to GMP and the safety requirements. All Electrical settings can be performed by Front panel with indicators at the front of the machine. The machine is equipped with pre pressing and main pressing systems. The compression force can be adjusted up to 6 tons.

A rotary force feeder with adjustable speed as well as a pre-compression station using rollers (2 tons) are included as standard. The turret is driven by center shaft drive mechanism by a motor and Powerful Reduction gear box. The turret speed is adjusted by A.C. (inverter) frequency drive.

Detailed Specification for Single Rotary Tablet Press (Lab Press-2) (SLP-II)

  • Technical Specifications

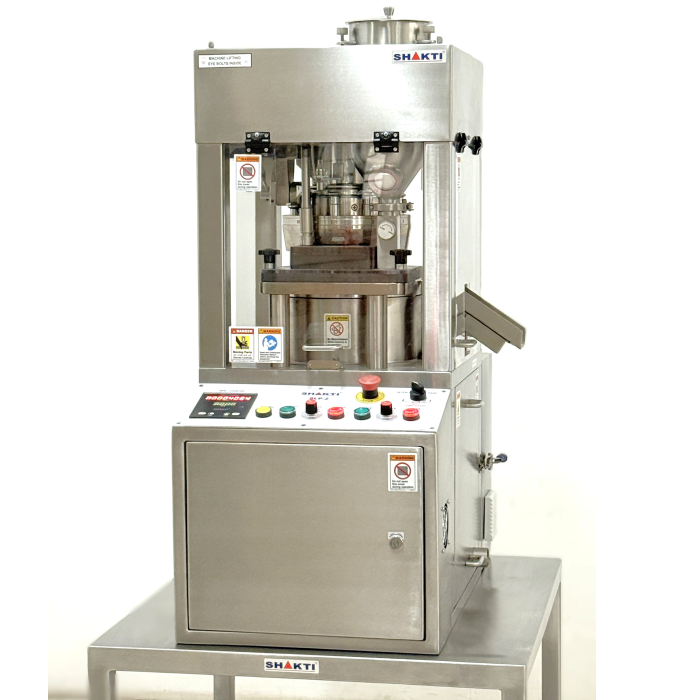

  • Single Rotary Tablet Press Mini Model with Mighty Features
MODEL'B', 'BB' & 'D' TOOLING'D' TOOLING'B' TOOLING
No. Of Station4+4+4=12810
Tooling4B/4BB/4D TOOLING'D' TOOLING'B' TOOLING
Max. Operating Load (Tons)60 kN / 6 Tons60 kN / 6 Tons60 kN / 6 Tons
Pre Compression Load (Tons)20 kN / 2 Ton20 kN / 2 Ton20 kN / 2 Ton
Turret Speed (RPM)3 to 383 to 383 to 38
Force Feeder RPM5 to 705 to 705 to 70
Output Tablets/ Hour * Min.120024003000
Output Tablets/ Hour * Max.90001820022800
Max. Tablets Dia. (MM)19 For "D" Tooling
16 For "B" Tooling
11 For "BB" Tooling
1916
Max. Depth Of Fill (MM)202018
Hopper Capacity3 Kg.3 Kg.3 Kg.
Upper Punch Penetration (MM)2 to 6 mm2 to 6 mm2 to 6 mm
Main Electric Motor
(Driven Through ACVF)
2 HP, 3 Phase2 HP, 3 Phase2 HP, 3 Phase
Gear Motor for Feeder
(Driven through ACVF)
0.25 HP, 1/3 Phase0.25 HP, 1/3 Phase0.25 HP, 1/3 Phase
Electric Supply415 V, 3 Ph, 50 Hz
220/480 V, 3 Ph, 60 Hz
415 V, 3 Ph, 50 Hz
220/480 V, 3 Ph, 60 Hz
415 V, 3 Ph, 50 Hz
220/480 V, 3 Ph, 60 Hz
  • The speed of the turret is adjustable through AC variable drive.
  • Force Feeder.
  • Pre Compression.
  • Excellent accessibility for quick cleaning and product conversion.
  • Center pillar drive Mechanism with powerful Gear Box.
  • Design ensuring the highest standard of G.M.P.
  • Operator Safety – Interlocking on Upper & Lower Guard.
  • Turret Electrode less Nichol Plated (ELNP).
  • Lower punch seals.
  • Hard heat-treated Presser Rollers.
  • Out side controls for Pre compression Adjustment, Tablet thickness adjustment and indicator for Tablet thickness control system.
  • Excellent accessibility for quick cleaning and product conversion.
  • Low noise level.
  • Easy movability.
  • Electrical voltage & frequency can be provided as per customers requirements.
  • Table trolley stainless steel with storage cabinet for dies & punches.
