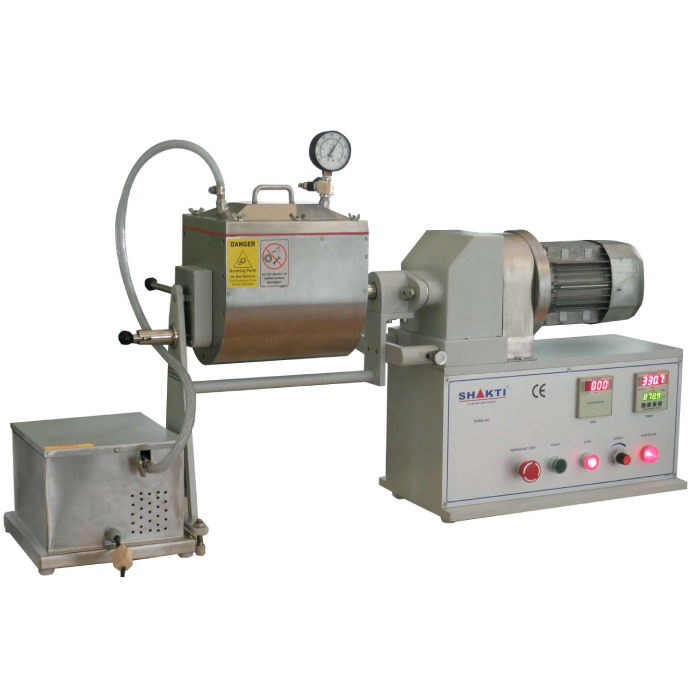

About Ribbon Mixer – Vacuum Jacketed (SRM+VJ)

This Attachment fitted on special design stand. The power [Ribbon] mixer having horizontal half round bowl open on upper side with Vacuum tight top lid and specially designed mixing blade having two stages both right and left hand ribbon type mixing blades. The Bowl can be delivered with a double jacket for cooling or heating with water or Electric Heating system.

The left and right hand spiral with upper and lower blade is rotated to circulate the material to be mixed. The half round bowl and spiral mixing blade made out of stainless steel having bowl capacity of 4 kg. And operational capacity of 2.5 kg. [Approx]. Half round bowl can be empty by tilting with the help of tilting handle. This Attachment is Suitable to Attached in our Both SHAKTI Main Drive.

Detailed Specification for Ribbon Mixer – Vacuum Jacketed (SRM+VJ)

  • Technical Specifications
  • Vacuum Pump Detail (GMP)
TYPESDETAILS
Bowl Gross Capacity4 Kg.
Bowl Working Capacity2.5 kg
Vacuum Capacity350/14 MM - Hg / in-Hg
Vacuum Pump1/16 HP, 220 v, Single Phase.
Net Weight35 Kg. [With Vacuum Pump]
Gross Weight63 Kg.
Dimensions513 (L) x 230(B) x 632(H)
Packing21" x 39" x 37"
Technical Data
Max. Vacuum Capacity27" Inch/HG
Max. Flow15 LPM
Motor1/16 HP, 220v Single Phase
Dimensions [MM]240 L x 150 B x 175 H
Weight6.5 Kg.
Ribbon Mixer – Vacuum Jacketed
