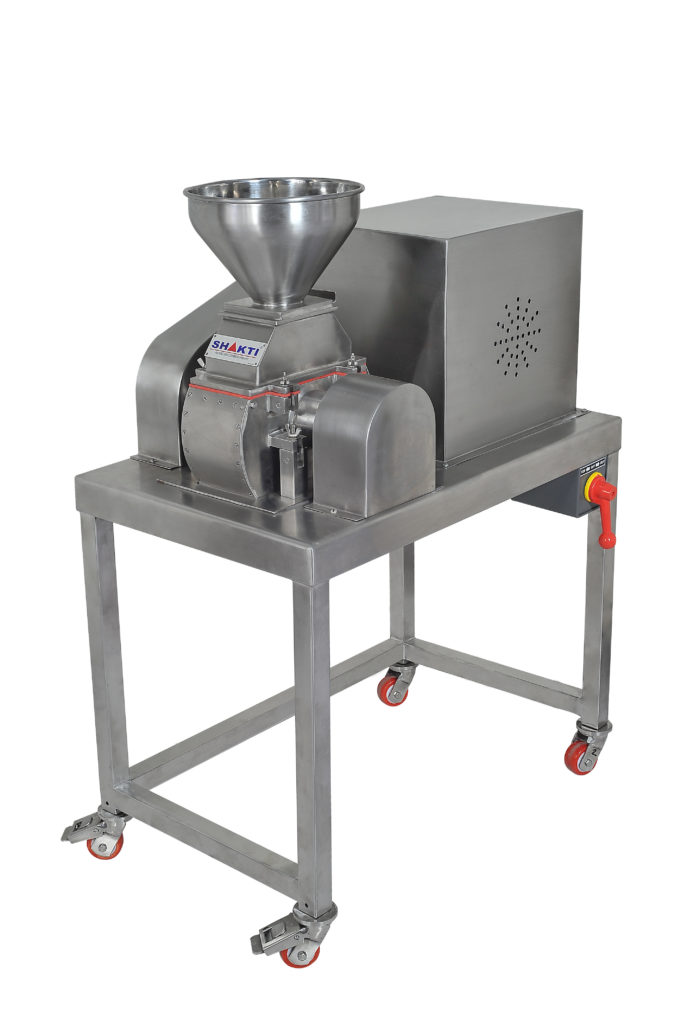

About Lab Communicating Mill R & D Model (SCOM)

Application:
This machine has been proved useful in Wet Granulation, Dry Granulation, Pulverizing, Dispersion or Wetting, Milling of Ointments and Sizing of Crude Dugs.

This machine can also be used in processing food baking, beverages, brewery, confectionery, canning, ceramics, coffee, colors, cosmetics, dairy, detergents and plastic industry for blending of colour pigments

Detailed Specification for Lab Communicating Mill R & D Model (SCOM)

  • Technical Specifications
  • Screens
TYPESDETAILS
Output
(Various According To Products, Rotor Speed, Screen)
10 Kgs. to 120 Kgs
Rotor Speed1000/2250/4500 RPM
StarterDOL Type
BladesSwinging Type With Knife & Impact Edge [14 nos.]
Screens[1] Round Hole Perforated Stainless Steel Sheet.
[2] Woven Stainless Steel Wire Mesh.
Perforated Screens Suitable Size1 MM Dia To 4 MM Dia Hole.
Wire Mesh Screens Suitable Size4 Mesh To 80 Mesh.
Electric Motor1 H.P./ 0.75 Kw/1440 RPM
Electric Supply440/380/220 V, 50/60 Hz, 3 PH.
Over All Dimension (MM)450 X 700 X 915 MM
Net Weight60 Kgs
Gross Weight91 Kgs

The choice of the screen depends upon the speed at which the machine is operated. Generally a large aperture is chosen than the size of particle ultimately required. In experimenting with the machine it is essential to start off with a much larger screen than seems advisable and to work downwards in size of aperture. Blocking of the screen may indicate too small an aperture or too rapid feeding.

lab-comminuting-mill-r-&-d-model
