Pelletizer

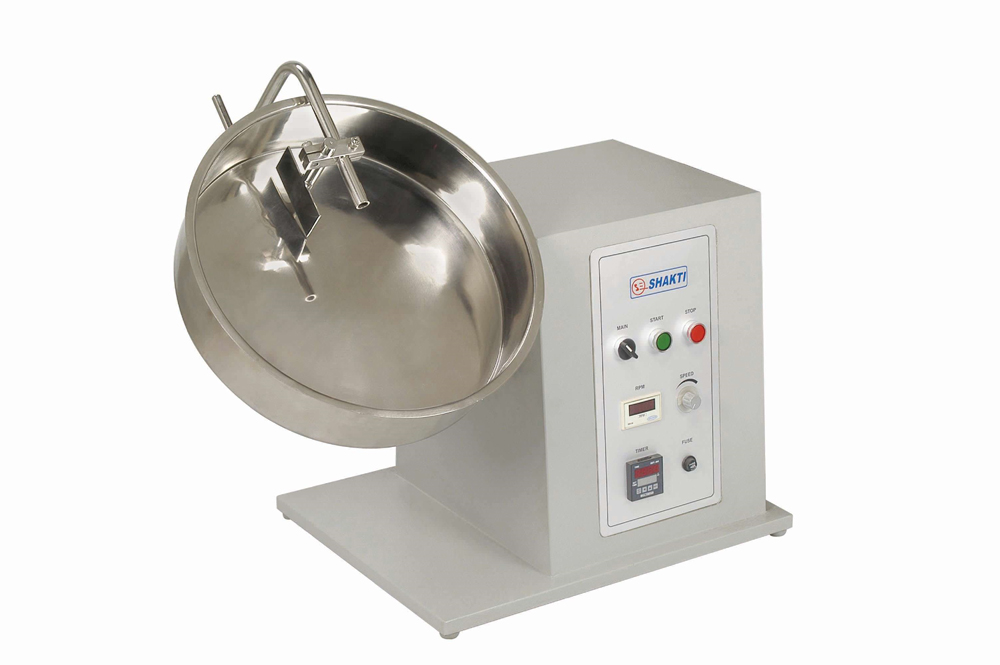

Pelletizer is the unit which is equipped with a tilting and locking device, which is easy to operate. This permits adjustment of the infinitely variable setting of the pan angle, over its whole range. For the cleaning of the sides as well as the bottom of the pan an adjustable scraper is provided. Parts coming in to contact with the material to be processed are made of polished stainless steel. The material to be processed is fed manually, or with a metering device, if a continues is required. The tilted palletizing pan, which rotates in a clockwise direction, is tilted to our motor drive. The material is brought to practically the highest point of the pan and then rolls down in the even scrim, to the lower half of the pan.

In accordance with the nature of the material the necessary quantity of liquid to from the pellets is added in certain places. The rolling movement and the addition of moisture cause pellet form. Due to the tilted pan and the movement of the material the larger pellets are carried to the top surface. The size of the pellets can be influenced by the tilting angle of the pan by the amount of liquid added and the method, which it is introduced. As soon as the pan is full the pellets will continuously roll over the edge of the pan. This Attachment is Suitable to Attached in our Both Main Drive.

Summary
Article Name
Pelletizer
Description
Pelletizer is unit is equipped with a tilting and locking device, which is easy to operate. This permits adjustment of the infinitely variable setting of the pan angle, over its whole range.
Author

Technical Specifications of Pelletizer

TYPEDETAILS
Gross Capacity2.5Kgs./ 2 liters
Working capacity1 Kg / 1 liter.
Net weight8 Kgs.
Gross weight18 Kgs..
Dimensions18’ x 18”x 9” inch
Packing19” x 19” x 10” inch.
