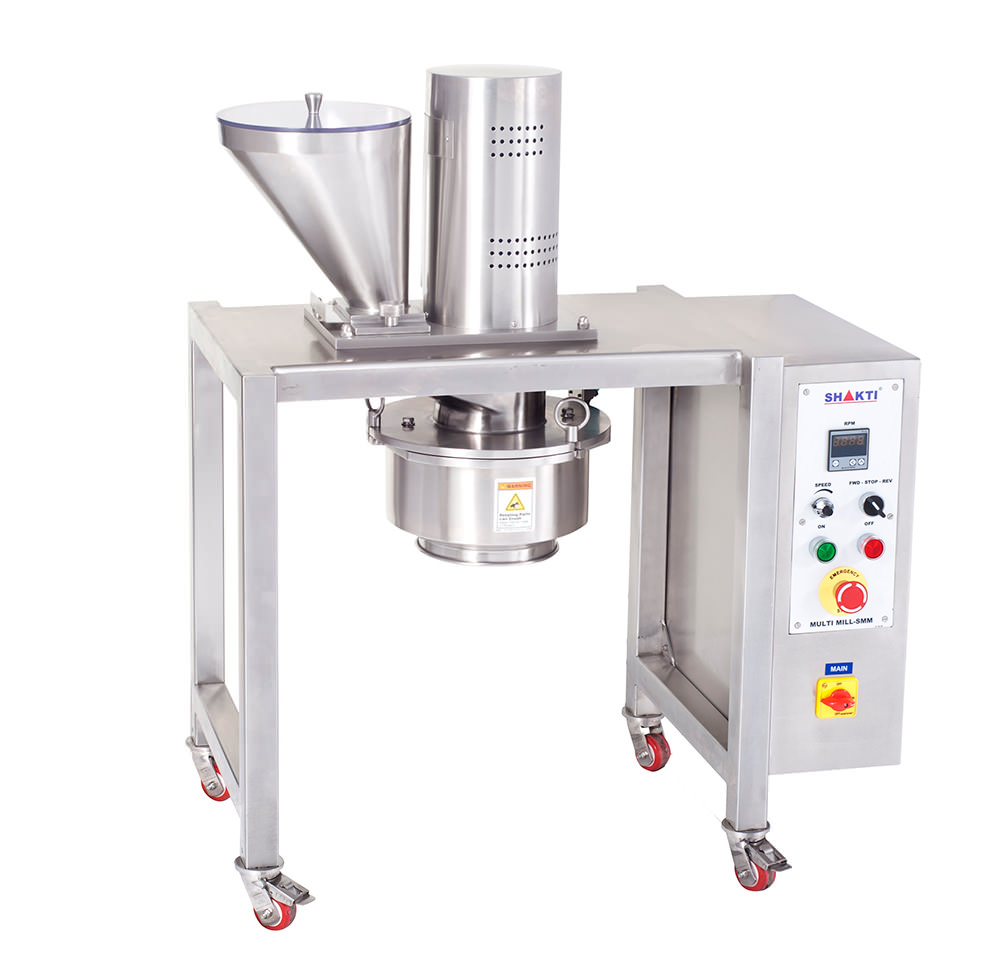

About Multi Mill Vertical – GMP Model (SMM)

SHAKTI High Tech Screen Multi Mill extremely reliable, perfect for even the most demanding of processing requirements in R & D. This Equipment balances performance with simplicity, to provide a solution that guarantees a high output but is easy to operate, clean and maintain.

Detailed Specification for Multi Mill Vertical – GMP Model (SMM)

  • Technical Specifications
  • Salient Features
  • Applications
  • Description
ModelSMM – M (Mini)SMM – P (Production)
Output Capacity**100 G to 70 Kg / HR50 g to 200 kg/hr
Charging Hopper Capacity2 Kg.5 kg.
Rotor Assembly Dia150 MM Dia.250 mm dia.
Motor1 HP / 3 Phase2 hp / 3 Phase
Variable Drive AC1 HP2 HP
Minimum Particle Size AchievableApproximately 150 Microns.Approximately 150 Microns.
Noise Level<75db<75db
Supply Voltage110V / 220V, 1 PH, or 220 / 415, 3 PH, 50/60 HZ.110V / 220V, 1 PH, or 220 / 415, 3 PH, 50/60 HZ.
Rotor Speed RangeMin 10 RPM & Max 2850 RPM VariableMin 10 RPM & Max 2850 RPM Variable
Beaters12 Knife Blades & 2 Scraper Blades.12 Knife Blades & 2 Scraper Blades.
Material Of ConstructionContact Part – SS 316
Non-Contact Part – SS 304
Contact Part – SS 316
Non-Contact Part – SS 304
Surface FinishInside Contact Part – Mirror Finish – RA 0.10 Micron
Outside – Matt Finish – RA 150 Grit (1.06 Micron)
Inside Contact Part – Mirror Finish – RA 0.10 Micron
Outside – Matt Finish – RA 150 Grit (1.06 Micron)
O Rings, Seals & GasketsAs Per GMP – Silicone Food Grade TypeAs Per GMP – Silicone Food Grade Type
Available SS 316 Perforated Screen Sizes
[Holes Dia in MM]
[a] 0.5, 1.0, 1.5 [b] 2, 3, 4, 5, 6 [c] 7,8[a] 0.5, 1.0, 1.5 [b] 2, 3, 4, 5, 6 [c] 7,8
Net Weight - Kg74 Kg126 Kg
Gross Weight - Kg100 Kg150 Kg
Machine dimensions - MM805 x 440 x 965 Height
  • Recervable Switch Can Change Direction Of Beaters From Knife To Impect Forward And Vise-Versa.
  • All Contect Parts Can Be Easily And Quickly Dismantled And Cleaned.
  • Machine is desine for continuous operation.
  • Casters provided for mobility.
  • Cylindrical screen for higher output.
  • Flameproof electrical can be provided at extra cost.
  • Beaters and scrapper blades of ss 316 quality.
  • Multimill is widely used for wet and dry granulation, pulverisation etc., in pharmaceuticals, chem cosmetics, siramics colours, dyestuf, food products etc.
  • It also finds application in pesticides, fertilizers, spices detergents insecticides, plastics & resins industres.

Unit consists of ss 304 or ss316 qulity charging hopper and procesing chamber with beaters assembly, motor, reversable switch, four speed step pullly, suitable screen with pillar mounted on base plat, with heavy castors.
