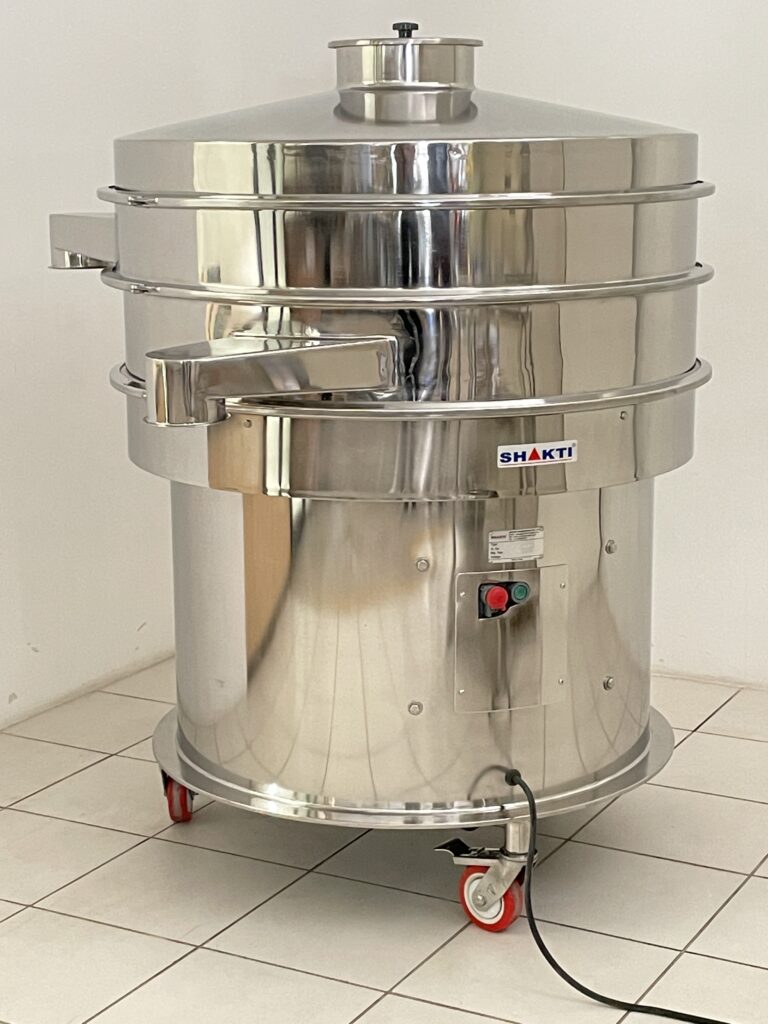

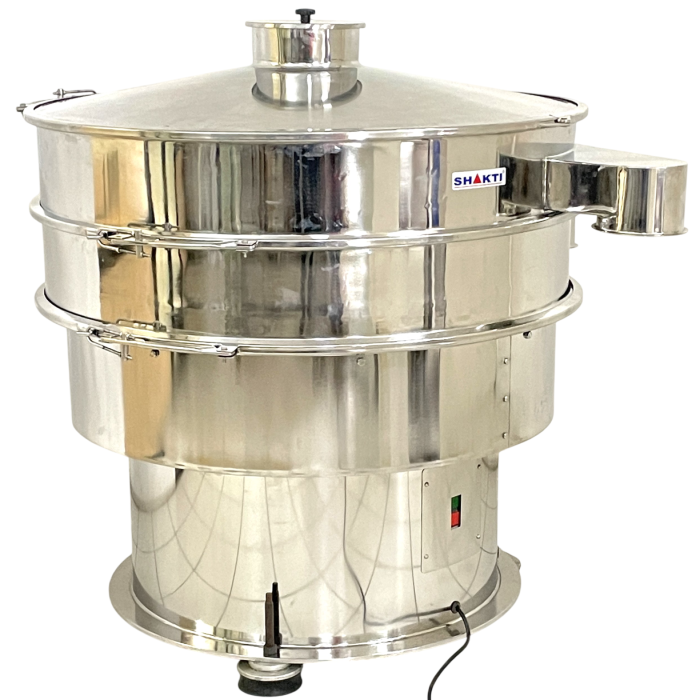

About Mini Vibro Type Shifter R & D Model (SVB)

Vibro sifter is a circulatory screening machine widely used by a number of industries for sieving, grading, sizing, screening of a range of solids or liquids from Pharmaceuticals, Food, Chemical, Dye, Cosmetic, and Plastic Powder Granules & Particles. Screening. Pharmaceutical Vibro Sifter is used to separate mass composition of solids, liquid from solid and grading the material as per particles size. It is a type of pharmaceutical machine used for separation of pharmaceutical solids or liquids.

Detailed Specification for Mini Vibro Type Shifter R & D Model (SVB)

  • Technical Specifications
  • What is Sifting?
  • Vibro Sifting Process
TYPESDETAILS
ModelSMSV - 300
OutputDepends On Material & Mesh Size.
Electric Motor0.25 HP. / 3 phase / 1440 RPM / 440 v.
Electric StarterDOL Type Start – Stop Push Buttons.
Charging HeightMax. – 960 mm.
Min. – 810 mm.
Discharging HeightMax. – 780 mm.
Min. – 650 mm.
Discharging Pipe Dia70 mm Diameter.
Dust Collecting Pipe Dia32 mm Diameter.
Net Weight58 Kgs.
Gross Weight80 Kgs.
Over All Dimension [mm]440 MM x 490 MM x 960 MM Max . Height
Case Dimension [mm] Outer Side635 MM x 533 MM x 863 MM [L x B x H]

The process of separating the desired elements and the undesired elements from the combination of solid to solid and solid to liquid material is referred as sifting. In process of sifting, the wired mesh, filtration or other distillation methods are used and applied. Sifting process is also used for classification of the granulated material by its particle size or for the measurement of size for analytical purpose.

A Vibro sifter machine consists of a screen / mesh placed on the base plate. The base plate is attached at the centre of the gyratory motor. The material fed through the inlet located on the top falls on the screen / mesh. The particles smaller than the mesh size passes from the screen and the larger sized particles are moved out through an outlet. The combination of vibratory motor and the weights placed on bottom and top of screen results into the desired filtration or separation of the material. A vibratory motor with unbalanced weights drives the machine, which can be controlled to vary the output. The materials are fed into the shifter through the top screen and over sized particles are discharged through an outlet. Vibro sifting equipment allows for superior and fast separation of particles. A Pharma sifter requires minimum maintenance and space.
