Laboratory Mixer

Laboratory Mixer

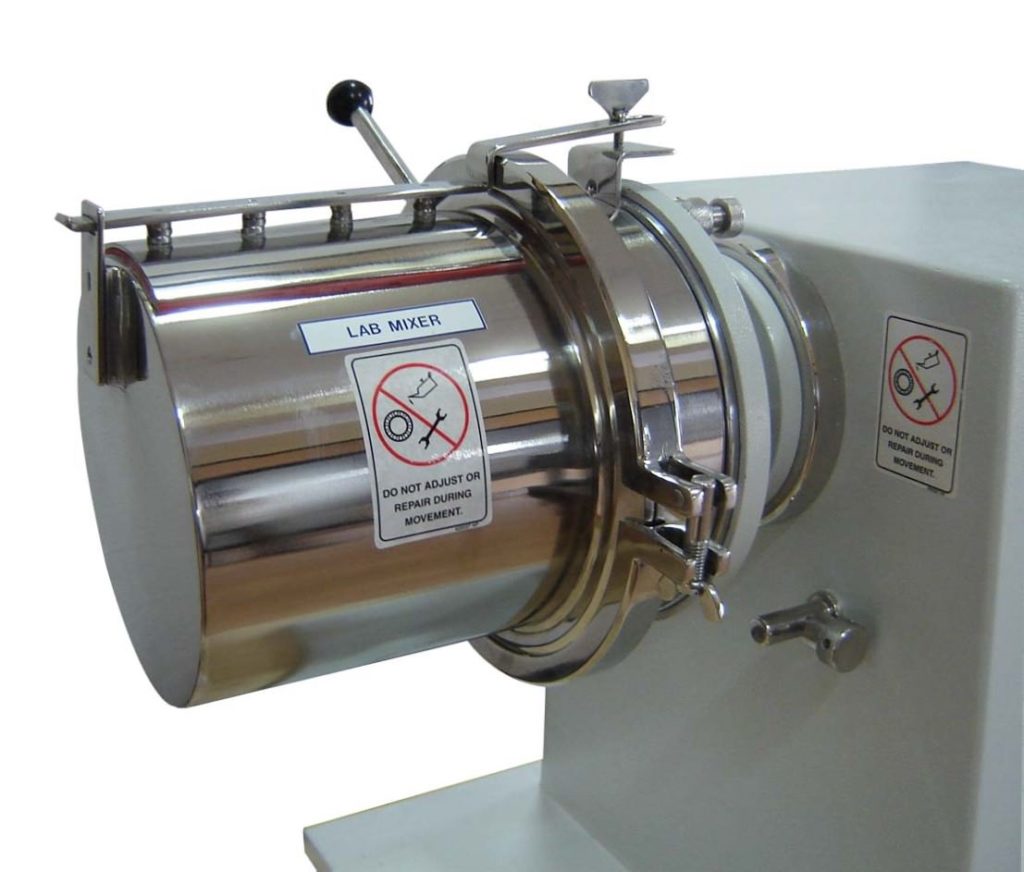

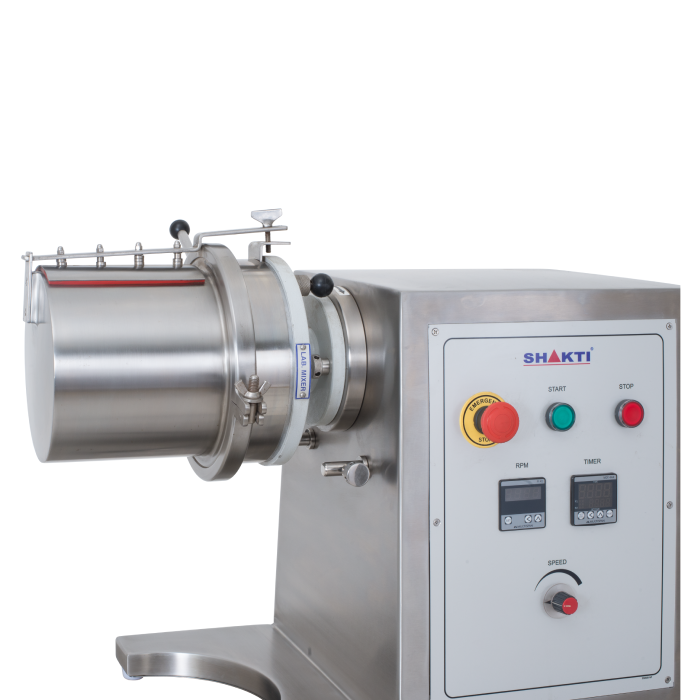

The laboratory mixer operates with plough shape type mixing elements and is designed for dry mixing of powders, granulates and fiber particle containing products. Quantity ratios of to 1:100000 can be mixed homogeneously within a few minutes. The 5 Litres capacity drum, unilaterally supported on one side, is tiltable 180 degree for loading and empting. Operating capacity is between 3-4 liters. The laboratory mixing drum made of stainless steel has a removable cover through which the material can be loaded and unloaded. The mixing tools as well as the connecting flange of the mixing drums are of stainless steel and are highly polished. The drum is attached with an adjustable tension spring. All parts coming in
to the contact with the material are made of stainless steel. The apparatus is suitable to be connected to our Both Main Drive.

Summary
Article Name
Laboratory Mixer
Description
laboratory mixer operates with plough shape type mixing elements and is designed for dry mixing of powders, granulates & fiber particle containing products.
Author

Technical Specifications of Laboratory Mixer

TYPEDETAILS
Gross Capacity5 liters
Working capacity3 to 4 liters.
Net weight7 Kgs.
Gross weight32 Kgs.
Dimensions11’ x 13”x 15” inch
Packing13” x 16” x 18” inch
