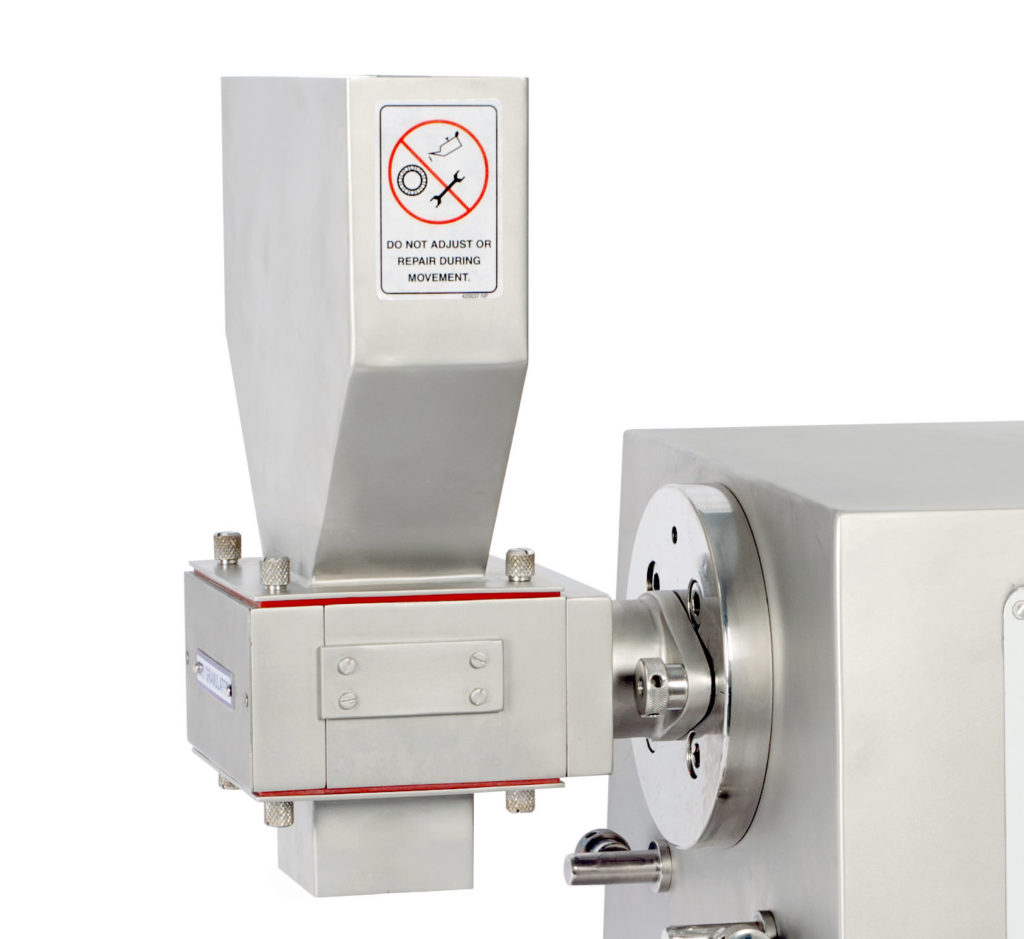

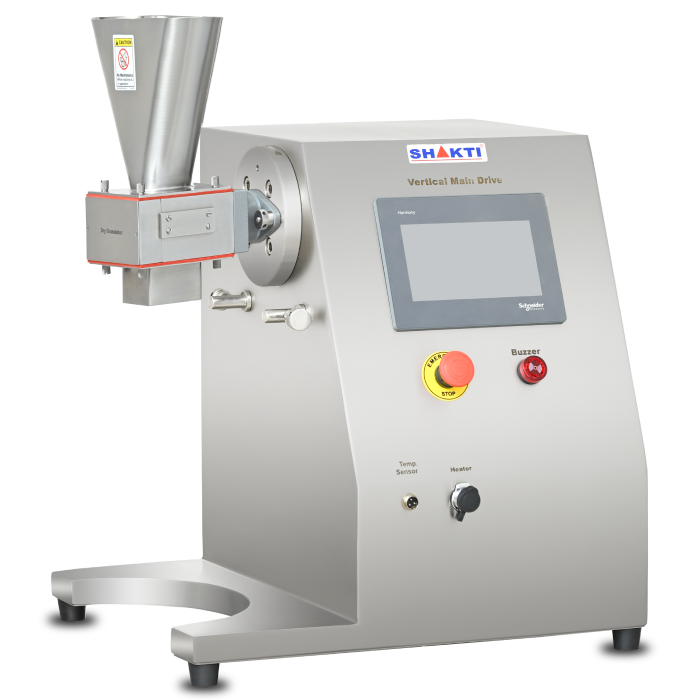

About Dry Granulator (SDG)

An ideal to granulate tablets, slugs and pellets. The Dry Granulator – SDG consists of two motor-driven rollers with teeth force. This forces the material to be granulated with a very low proportion of powder. Hard slugs of 2 to 2.5 mm thick the following granulation will be obtained, 50% of 16 mesh, 25% of 24 mesh, 10% of 70 mesh and 20% of the powder.

This is a very sturdy attachment and can be run continuously for granulating tablets/slugs and pellets & Suitable to Attached in our Both Main Drive.

Detailed Specification for Dry Granulator (SDG)

  • Technical Specifications
TYPEDETAILS
Working Capacity18 Kgs / hour.
Bowl16 SWG, SS 316
Surface FinishMirror Finish – RA 0.10 Micron (Inside)
Matt Finish - 150 Grit (Outside)
RollersSS 316
GasketFood Grade Silicone
Dimensions10" x 18" x 13.5" Inch
Net Weight12.5 Kgs.
Gross Weight30 Kgs.
Packing11" x 9" x 15" Inch
Dry Granulation - SDG
