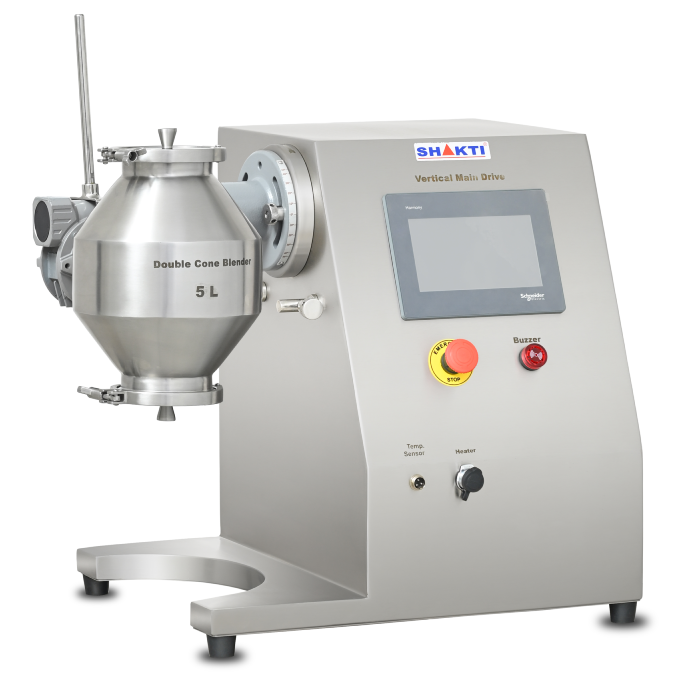

About Double Cone Blender – 1, 2, 3 & 5 Kgs (SDC)

Double Cone Mixer operates on free flow principle. This unit is used for rapid mixing of all types of free flowing powders and granules. The uniform, multidimensional arrangement of the mixer walls ensures good mixing.

The vessel is manufactured from stainless steel and secured with threaded knobs. This unit can be attached to the Universal Gearing.

Detailed Specification for Double Cone Blender – 1, 2, 3 & 5 Kgs (SDC)

  • Technical Specifications
TYPEDETAILS
Gross Capacity (0.6 BD)1 Kgs./2 Ltrs.2 Kgs./4 Ltrs.3 kg./6 Ltrs.5 kg./10 Ltrs.
Working Capacity (0.6 BD)500 Gms.500 Gms.1 to 2 kg.3 to 4 kg.
Dimensions in Inch12" x 10" x 8.5"12" x 10" x 8.5"8" x 8" x 6.5" inch12" x 10" x 8.5"
Net Weight5 Kgs.5 Kgs.4 Kgs.5 Kgs.
Gross Weight20 Kgs.20 Kgs.18 Kgs.20 Kgs.
Packing Size In Inch12" x 9" x 11"12" x 9" x 11"12" x 9" x 19"12" x 9" x 11"

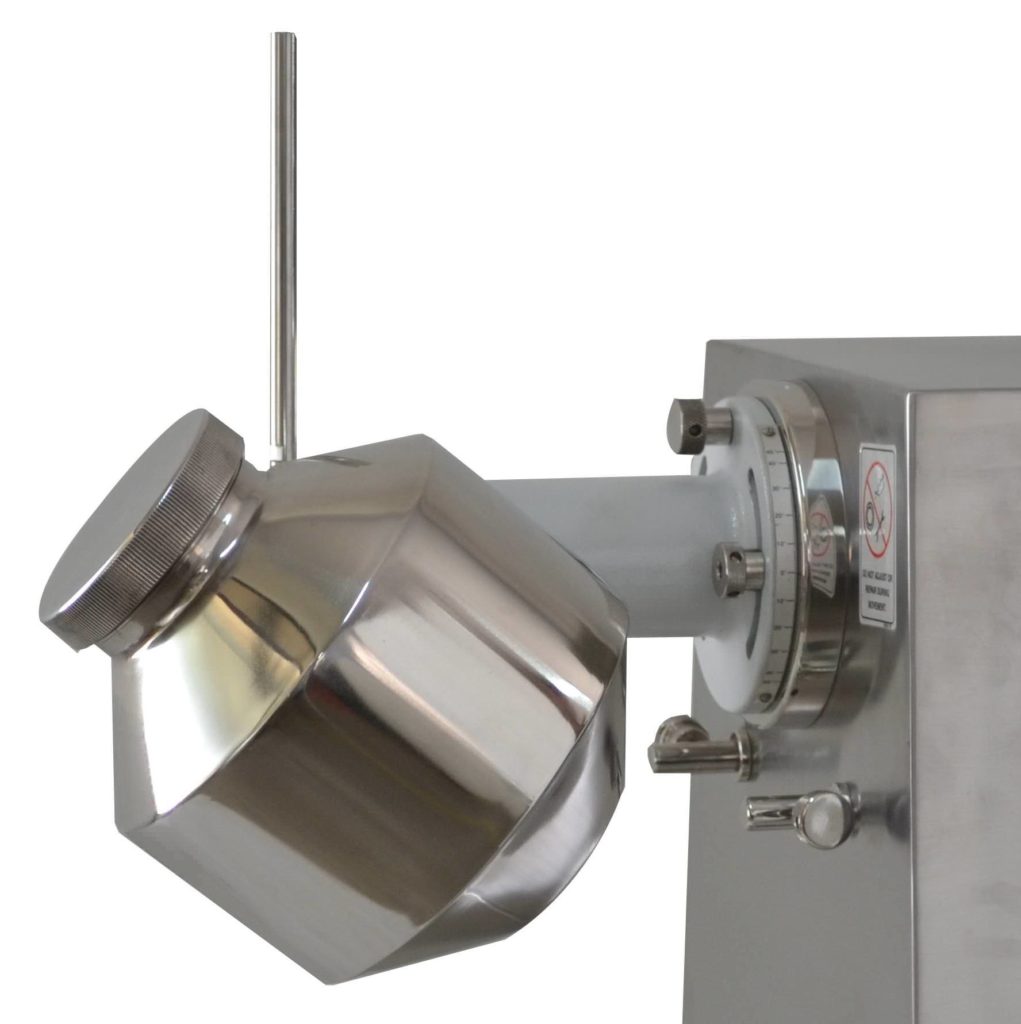

Double Cone Mixer
