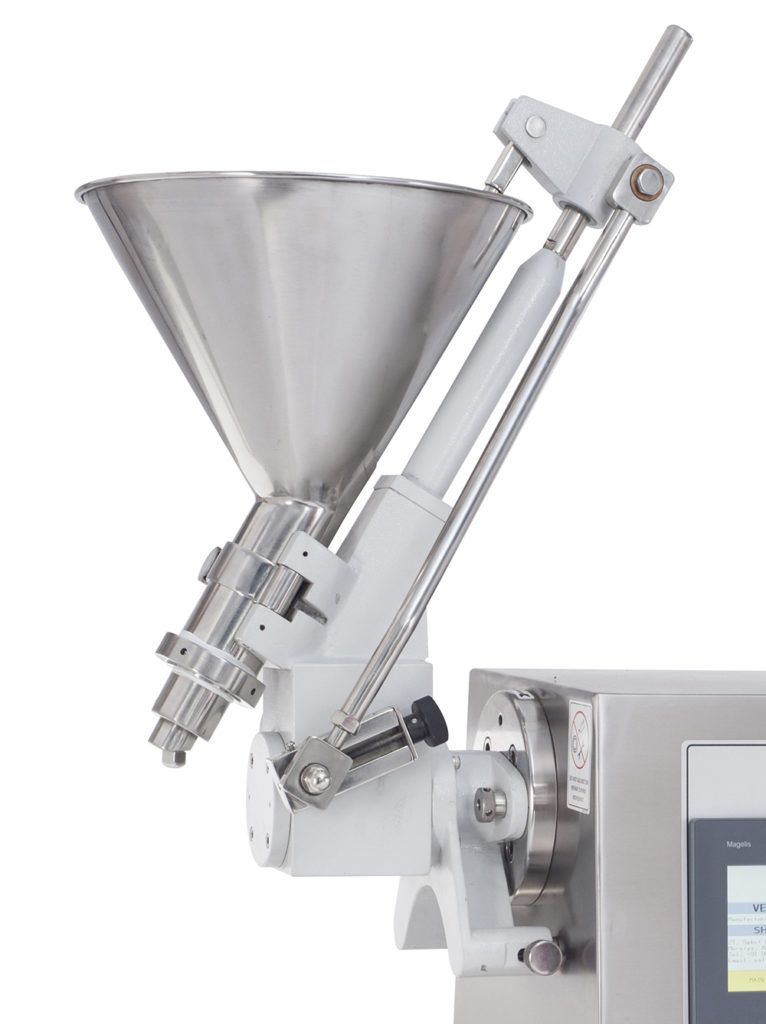

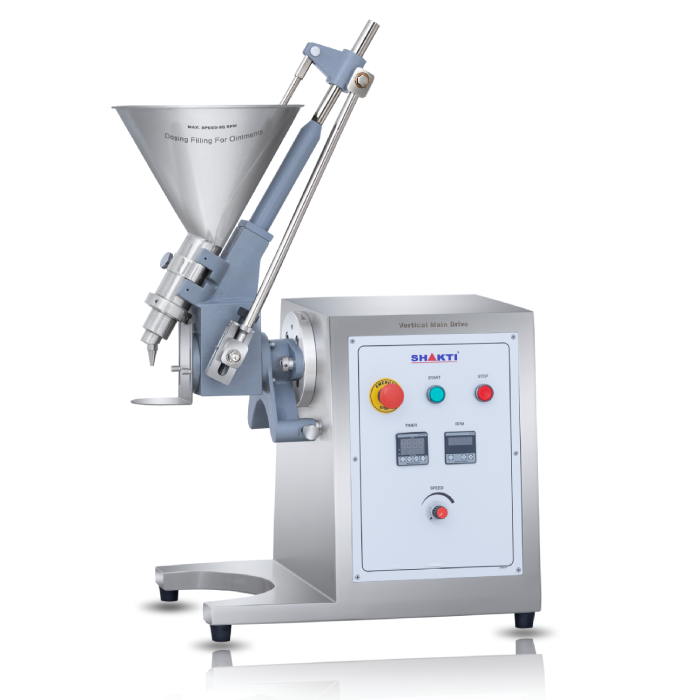

About Dosing Filling for Ointment (SDFO)

A silent feature of Dosing Filling for Ointment SDFO attachment is easy adjustment, quick removal of the pump and Charging Hopper for cleaning. The Machine is suitable to fill drip free and accurately, ointments, creams, pharmaceuticals and cosmetic emulsion, toothpaste, oil paints, jam, ketchup, and similar products in to tubes, jars, bottles, plastic containers etc., the capacity of this attachment between 1000 and 1200 fills per hour.

Standard dosing ranges between 10 to 200 ML. filling nozzles with 2, 4, & 8 mm I.D are delivered with the unit. The hopper have capacity of 18 liters, and all parts in the contact with the material to be filled are made of stainless steel. This Attachment is Suitable to Attached in our Both Main Drive.

Detailed Specification for Dosing Filling for Ointment (SDFO)

  • Technical Specifications
TYPEDETAILS
Fills Capacity1200 fills / hour.- Manually
Hopper Capacity5 Ltrs./Optional – 18 Ltrs.
Hopper16 SWG, SS 316
Surface FinishMirror Finish – RA 0.10 micron (Inside)
Matt Finish - 150 grit (Outside)
GasketFood Grade Silicone
Main BodyAluminum Powder Coated
Net Weight18 Kgs.
Gross Weight16 Kgs.
Dimensions22' x 17.5" x 30" inch
Packing35" x 27" x 22" inch
DOSING FILLING FOR OINTMENT
