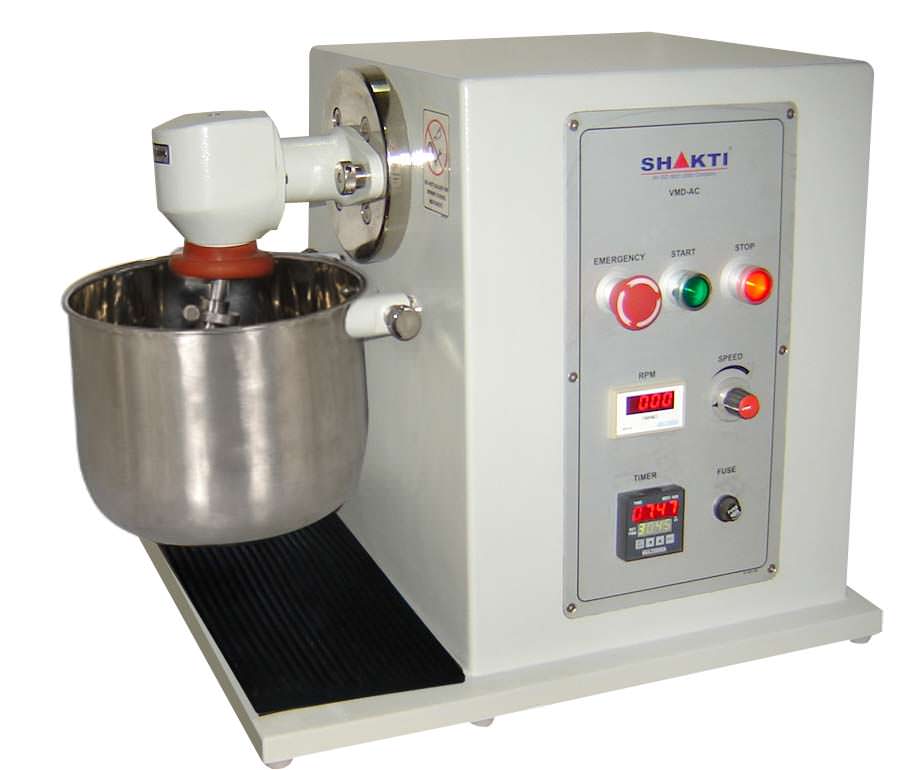

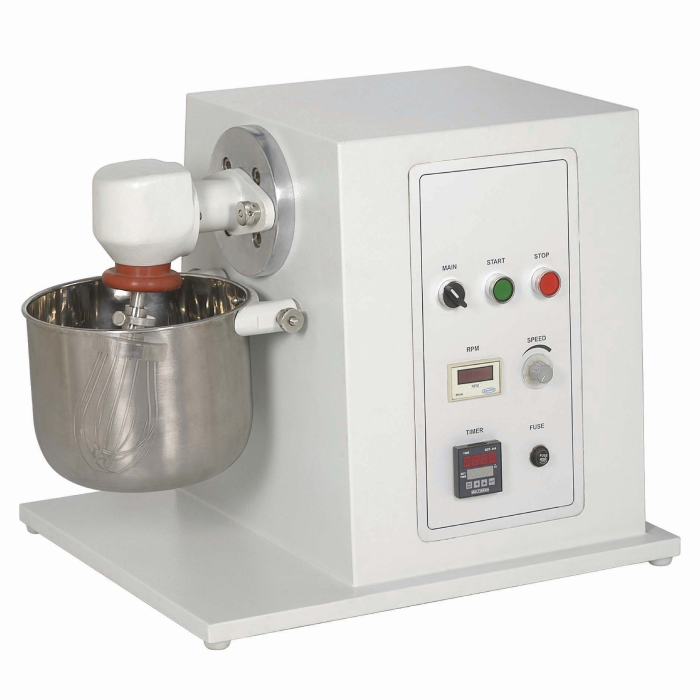

About Agitator (SAG)

Agitator is used for stirring, agitating and beating. All kind of liquids, emulsions, suspension and similar mixtures. Agitator can mix all types of different viscous liquids. Tiring action duplicates manual stirring motions. total capacity of the kettle is 5 Liters.

The working capacity approx. 3-3.5 Litres.

The kettles and stirring arm are made of stainless steel.Temperatures of kettle can be adjusted by the help of thermostat knob. The kettle is also easily removable.

This Attachment is Suitable to Attached in our All Main Drive.

Detailed Specification for Agitator (SAG)

  • Technical Specifications
Gross Capacity5 liters
Bowl 16 SWG, SS 316
Surface finishMirror finish – ra 0.10 micron ( Inside)
matt finish - 150 grit (outside)
StirrerSS 316
GasketFood Grade Silicone
Working capacity3 to 5 liters.
Main BodyAluminum Powder Coated.
Net weight5.5 Kgs.
Gross weight 20 Kgs.
Dimensions5.5’ x 7”x 13” inch
Packing 17” x 11.5” x 14” inch
Agitator
